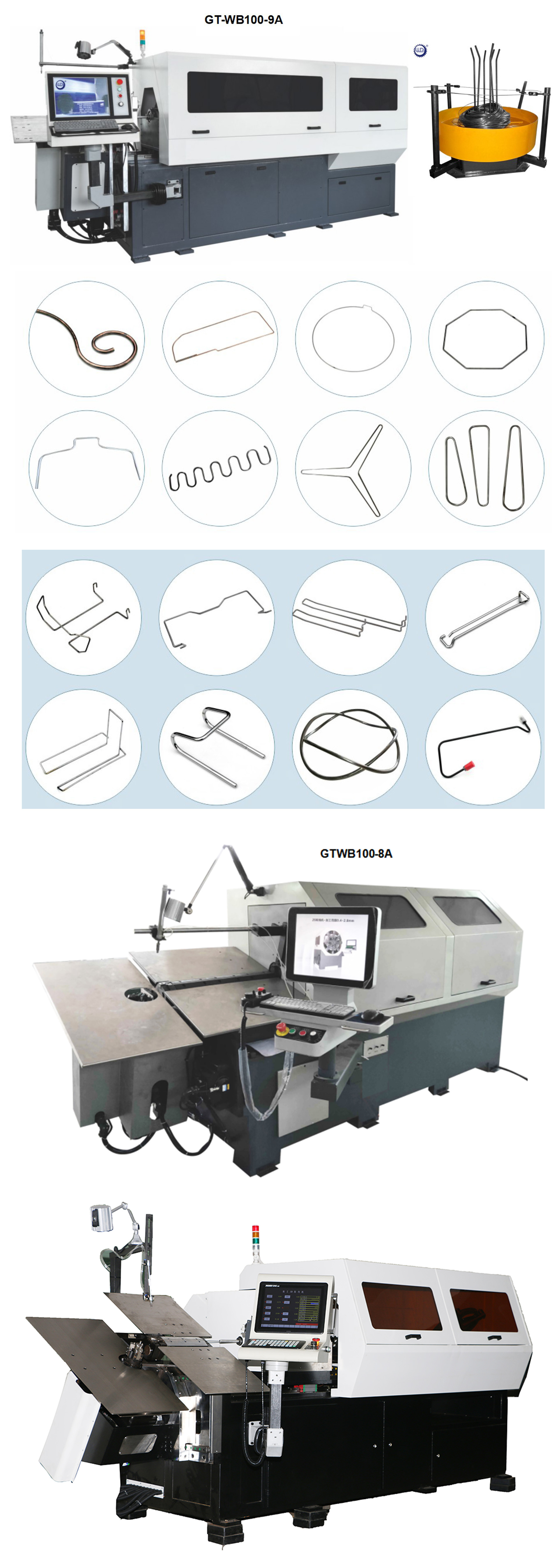

3D CNC Wire Bending Machine
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed.
Adopts Japanese branded servo motor and screen display with high quality controller. Easy operation and fast turn-key.
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese branded servo motor and screen display with high quality controller. Easy operation and fast turn-key.
Advantages & Feature:
3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable. Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1）Auto Industry area2）Metal wire industry
3）Display table and cargo shelf4）Furniture and Kitchen
5）Hardware industry6）Mattress, Sofa spring area
7）Architecture area8）Hardware Artcraft
Model | GT-WB-100-9A | GT-WB-80-8A | GT-WB-70-10A | GT-WB-70-8A | GT-WB-70-7A |
Wire size | 4.0-10.0mm | 4.0-9.0mm | 2.0-7.0mm | 2.0-7.0mm | 2.0-7.0mm |
Axis | 9 | 8 | 10 | 8 | 7 |
Wire feeding value (mm) | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 |
Feeding length number | 3pairs/对 | 3pairs/对 | 3pairs/对 | 3pairs/对 | 3pairs/对 |
Wire turning angle | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
Platform Lifting Height | +25至-120mm | +25至-120mm | +25至-120mm | +25至-120mm | +25至-120mm |
Twisting head lift height | +20至-180mm | +20至-180mm | +20至-180mm | +20至-180mm | +20至-180mm |
Left to right moving range | Left:100mm Right:50mm | Left:100mm Right:50mm | Left:100mm Right:50mm | Left:100mm Right:50mm | Left:100mm Right:50mm |
Feeding front and back moving range | Front:300mm Back:100mm | / | Front:300mm Back:100mm | / | / |
Total output power of servo motors | 27.8KW | 25.8KW | 24.2KW | 17.5 | 16.2KW |
| Automatic decoiler | 1000KG | 800KG | 500KG | 500KG | 500KG |
Machine size(cm) | 420x152x160 | 420x152x160 | 380x1520x1600 | 260x122x160 | 260x122x160 |
Machine weight | 4500.0(kg) | 4200.0(kg) | 3800.0(kg) | 3200.0(kg) | 2800.0(kg) |

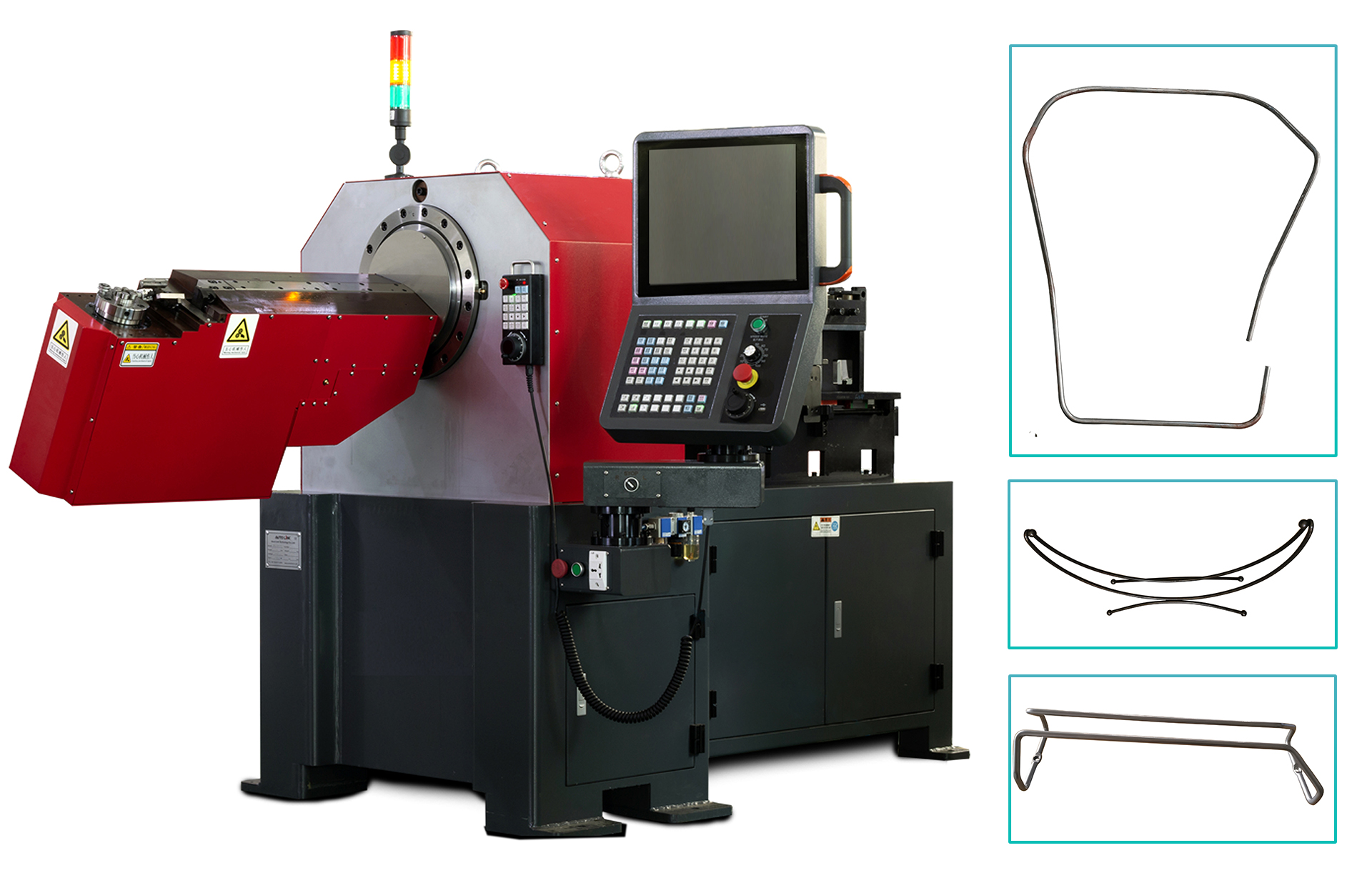

3D CNC Wire Bending Machine
Technical Paramter
Model | GT-80R-5A | GT-100R-5A | GT-130R-5A | GT-140R-5A | GT-160R-5A |
Wire size | 3.0-8.0mm | 4.0-10.0mm | 5.0-13.0mm | 6.0-14.0mm | 8.0-16.0mm |
Axis | 3 | 3 | 3 | 5 | 5 |
Air axis | 2 | 2 | 2 | / | / |
Wire feeding value | Max.1000.00 Min.0.01 | Max.1000.00 Min.0.01 | Max.1000.00 Min.0.01 | Max.1000.00 Min.0.01 | Max.1000.00 Min.0.01 |
Feeding length number | 3 pairs/对 | 3 pairs/对 | 3 pairs/对 | 3 pairs/对 | 3 pairs/对 |
Platform moving | 800mm | 800mm | 800mm | 800mm | 800mm |
Twisting head lift height | 32mm | 32mm | 32mm | 32mm | 32mm |
Total output power | 10.4KW | 12.8KW | 20.3KW | 26.8 KW | 29.8KW |
| Decoiler | 500KG | 1000KG | 1000KG | 1000KG | 1000KG |
| Machine size | 220 x 100 x 150 | 250 x 140 x 160 | 250 x 150 x 160 | 380 x 210 x 170 | 380 x 210 x 170 |
Machine weight | 2600.0(kg) | 3000.0(kg) | 3400.0(kg) | 4000.0(kg) | 4500.0(kg) |
FAQ:
1. How was about your machine quality? 1)we have been manufacturing bending machinery for over 12 years, all of our machines with experienced fabrication and good assembling. 2)our factory are SGS, TUV inspected and machines are all CE certified.
2. If your machine got problems, how can we do that? 1).all of our machines are under one year guarantee period. and our CNC controlling system enjoy 3 years guarantee , everlasting technical support. 2).we have many distributor and local agent in your country, who can do on-site after-sale service. we can also dispatch our technician to your factory for big problem shooting in case of big problems.
3. How can we learn to operate your machine? 1)you can send people to our factory to get training of how to use machine before delivering machine. or we are requested to send technician to your factory to do commissioning and basic training. 2). after commissioning , if you still not very skillful of the operation, we can give you online camera video training. 3). our sales team was 24 hours on-line for pre-sale, and after sale service. you can contact us at any time.
4. What is your payment term and Incoterm ? 1)we accept payment term as L/C and TT. 2) we accept Incoterm as Ex-works, FOB ,CNF and CIF.
5. What is your offer composition? our offer include machine , decoiler , mold or tools and Export wooden case packing.
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
