Paint Roller Handle Making Machine
Paint Roller Handle Making Machine. We can customize a variety of paint roller handle forming machines according to customer drawings, and can produce paint roller handle with a wire diameter of 3.0-8.0mm.
Paint Roller Handle Making Machine
Paint roller handle making machine is to produce paint roller handle frame expertly. It can not only make lips stamping but also threading and end chamfering fully automatically. Plastic cover dressing device can be manual type or combined in line in automatic type for options and pin making machine is also available upon request.
This is high efficient automatic machine which can save labor and electricity, and good output with high precision. Plalstic gripper was optional upon request.
Technical Parameter
Model | GT-PR-8S | GT-PR-8RS | GT-PR-8MU | GT-PR-4 |
Function | Chamfering | Chamfering+threading | Overdue long type | Pin punching |
Wire size | 3.0-8.0mm | 3.0-8.0mm | overdue long type | 1.5-4.0mm |
Feeding length | 0-500mm | 0-500mm | 0-900mm | 0-500mm |
Production capacity | 16pcs per minute | 12pcs per minute | 12-16pcs per minute | 40pcs |
Motor power | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
Dimensions (LxWxH) | 230 x127x192cm | 230 x127x192cm | 245x127x195cm | 180x120x178cm |
Weight | 1300kg | 1350kg | 1400kg | 1100kg |

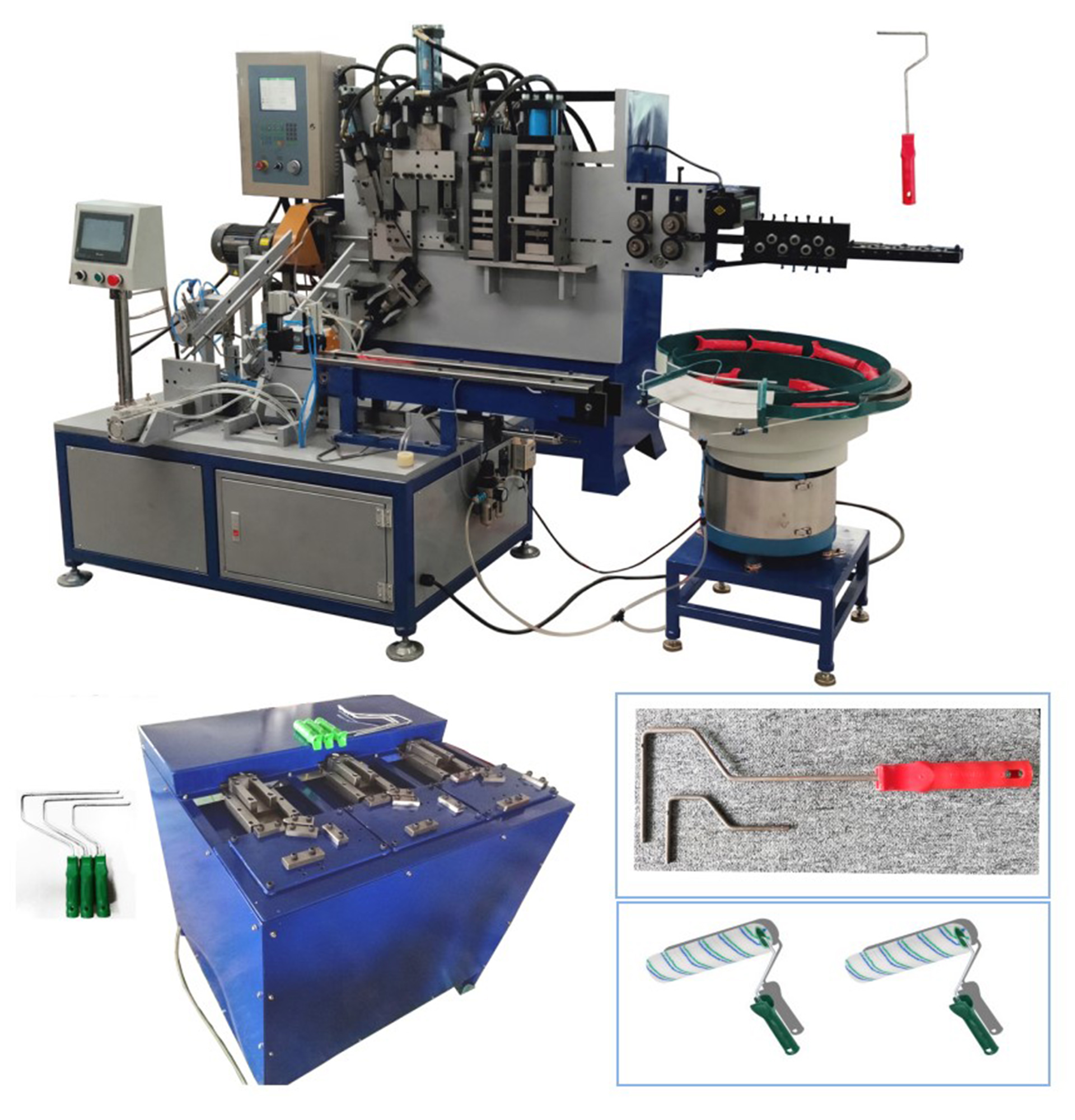

Automatic Roller Handle Gripper Inserting Line
Paint roller gripper can be inserted by hand or by machine automatically, the first picture is fully automatic gripper insert machine, PLC controlled and 7” touch screen. The second picture is manual gripper insert machine,which can insert 3 grippers simultaneously, but it need workers to put products into the matrix.
Name | Automatic gripper insert machine | Manual gripper insert machine |
Production speed | 12-30pcs/minute | 12pcs per minute |
Air pressure | 3HP | 3HP |
Dimensions (LxWxH) | 115*105*1200 | 120*115*109cm |
Paint Roller Production Equipment
Model | Photo | Technical data |

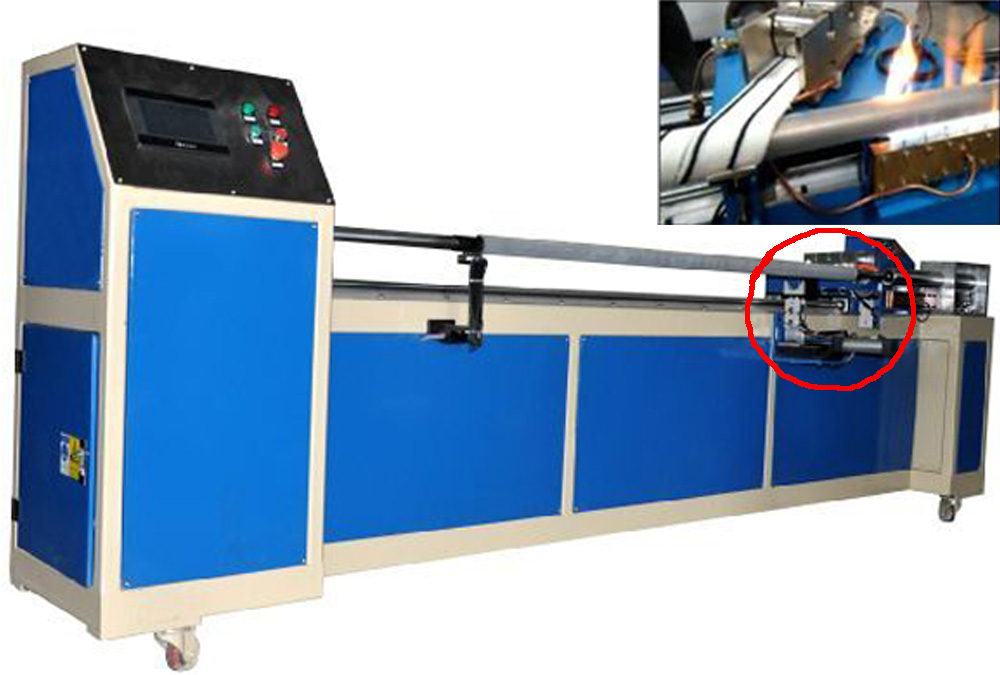

Semi-automatic paint roller fabric sealing machine |  |
2.Power: 1.65kw 3.Air pressure气压: 0.6-0.8Mpa 4.Production rate生产率: 120-130pcs/hour. 5.Control: PLC & Servo system PLC 6.Feeding length: 1.64m~1.8m 7.Fabric tube inner dia: Ø12mm~Ø56mm 8.Roller material: PP 9.Heating method: Gas & Oxigeon 10.Machine size: 3300mm*500mm*1350mm（L*W*H) |

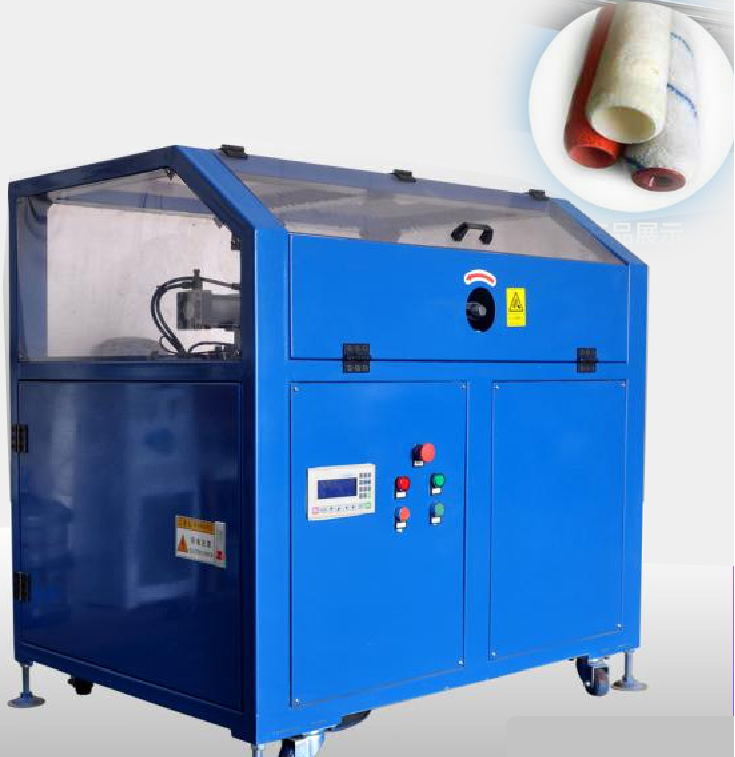

| Paint roller cutting and chamfering machine |  |
2.Power: 2.2kw 3.Air pressure: 0.6-0.8Mpa 4.Production rate: 750~850pcs/hour 5.Control: PLC & pneumatic system PLC 6.fabric tube inner dia: Ø12mm~Ø56mm 7.Cutting length：4',6',7',9'... 8.Cutting angle：60°or 90° adjustable 9.Roller material: PP,PVC,Paper core 10. Self protection device equipped 11.External Machine size: 1750mm*800mm*1200mm（L*W*H) |

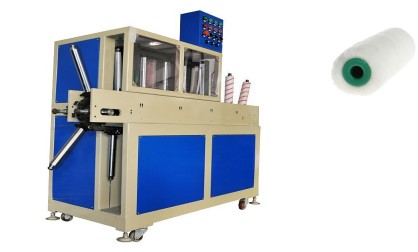

| Fabric roller combing machine |  | 1.Voltage: according to customer 2.Power: 1.7kw 5.Control: frequency variator 6.Fabric tube inner dia.: Ø25mm~Ø56mm 7.Fabric布料: polyester fiber, nylon ect.. 8.Machine size: 2350mm*860mm*1560mm（L*W*H) |

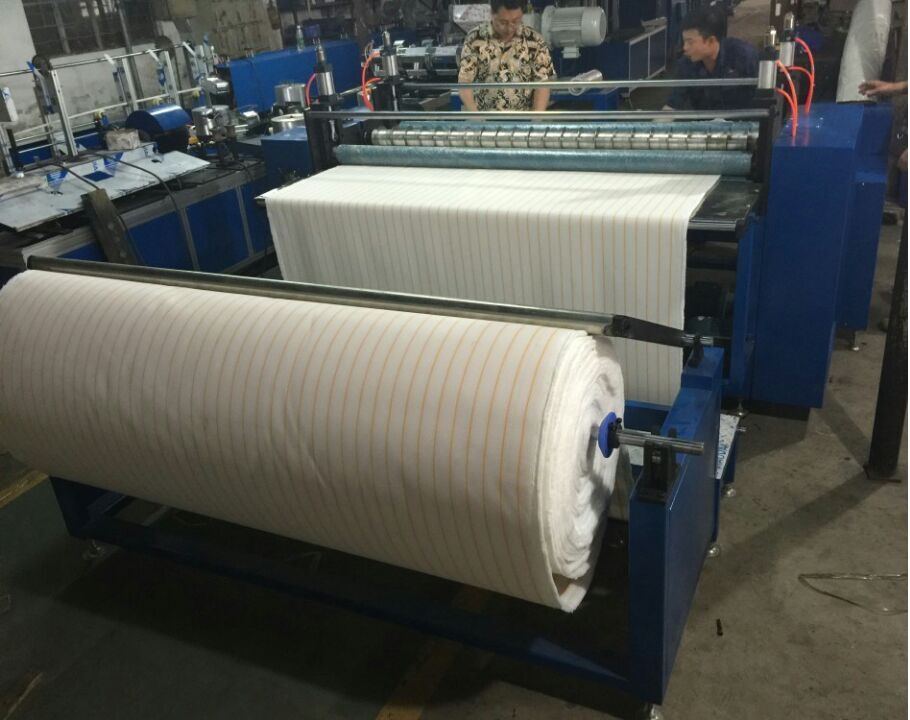

Roller Fabric Slitting Machine |  | 1.Voltage: As customer requirement 2.Power: 3.75kw 3.Air Source: 0.8Mpa 4.Production Efficiency: 4m~5m/min 5.Max Feeding Width: 1.62m 6.Max Feeding Roll Diameter: 1.2m 7.Max Receiving Roll Diameter: 1.2m 8.Control Mode: Frequency Converter 9.Slitting Mode: Import round blade, the equipment equipped with 25 pieces of round blades and blade holder 10.Material Receiving Mode: Magnetic powder receiving mechanism, gas up axis 11.External Dimension: 3500mm*2350mm*1600mm（L*W*H） |

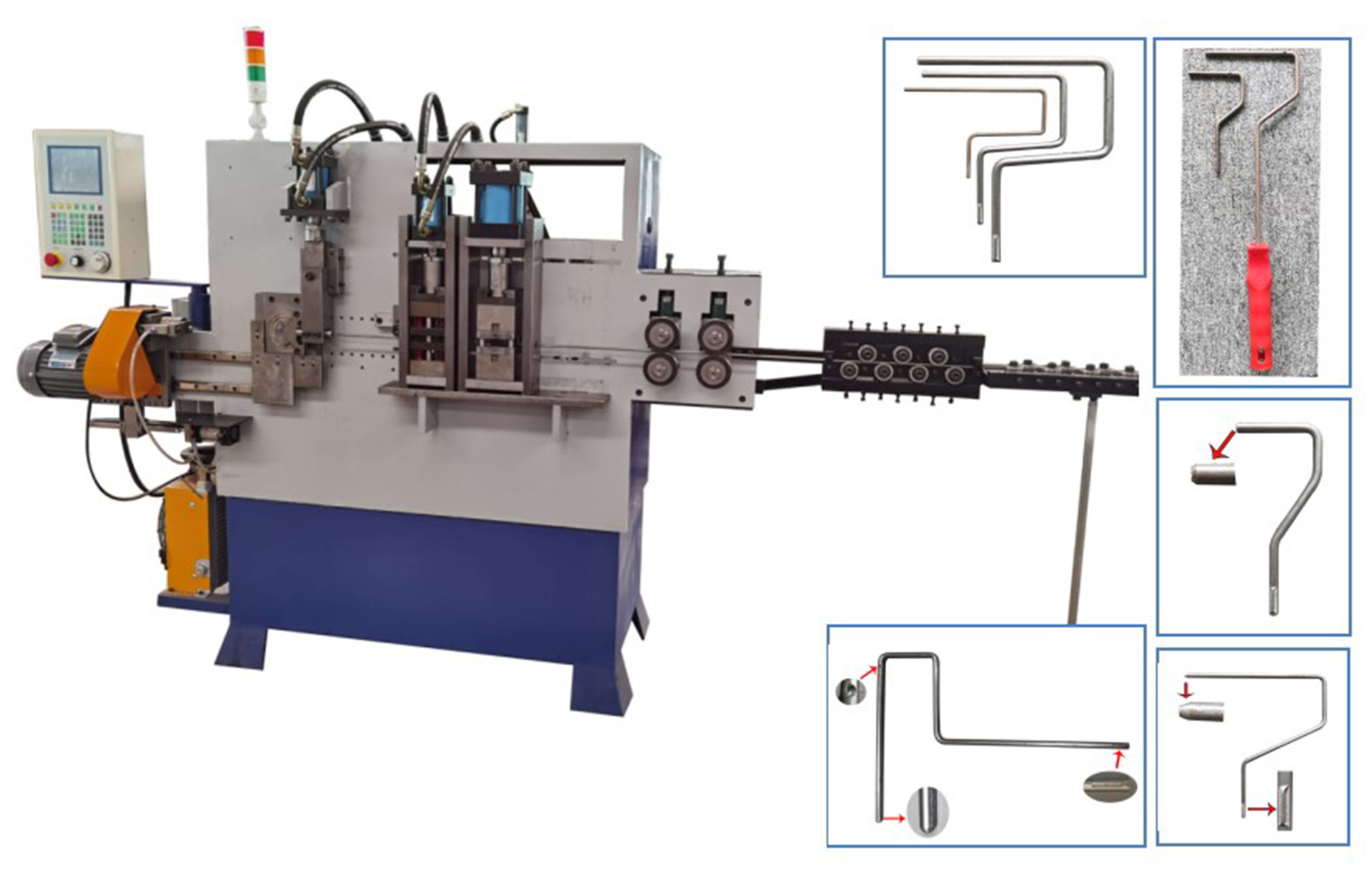

CNC Paint Roller Handle Making Machine
This newly designed machine is specially for requirements of many kinds of different roller handles. As this machine requires no mold, versatile compact design allow it to produce hundreds of different angle shapes of roller handles. Feeding length can be up to 650mm . Working principle: Shape was concrete through
servo motor , no need mold, programmable, punching and ear stamping under control of hydraulic cylinders. Easy operation and fast shift time of changing models which reduce the cost . especially meeting the demand of 90 degree roller handle with high precision.
Technical Paramete
Model | GT-XS-80BC |
Function | Chamfering |
Program storage(plus) | 3000 |
Wire size | 4.0-8.0mm |
Feeding length | 100-650mm |
Production capacity | 14pcs per minute |
Servo motor | 2.3kw*2 |
Motor power | 5.5kw |
Chamfering motor | 0.75kw |
Dimensions (LxWxH) | 250 x130x195cm |
Weight | 1500kg |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
