Flat Wire Bending Machine
This flat wire bending machine is a professional molding machine developed for flat thin materials.
The advantage is that the speed is very fast, and the stamping parts with relatively complicated structure can be completed at one time.
Fully automatic: feeding-punching-cutting-folding Bend-finished products and other processes.
For the product industry with extremely high precision, such as the electronics industry, the lighting switch industry, the hardware clip and so on.
Flat Wire Bending Machine
This flat wire bending machine is a professional molding machine developed for flat thin materials. The advantage is that the speed is very fast, and the stamping parts with relatively complicated structure can be completed at one time. Fully automatic: feeding-punching-cutting-folding Bend-finished products and other processes.
For the product industry with extremely high precision, such as the electronics industry, the lighting switch industry, the hardware clip and so on.
Technical

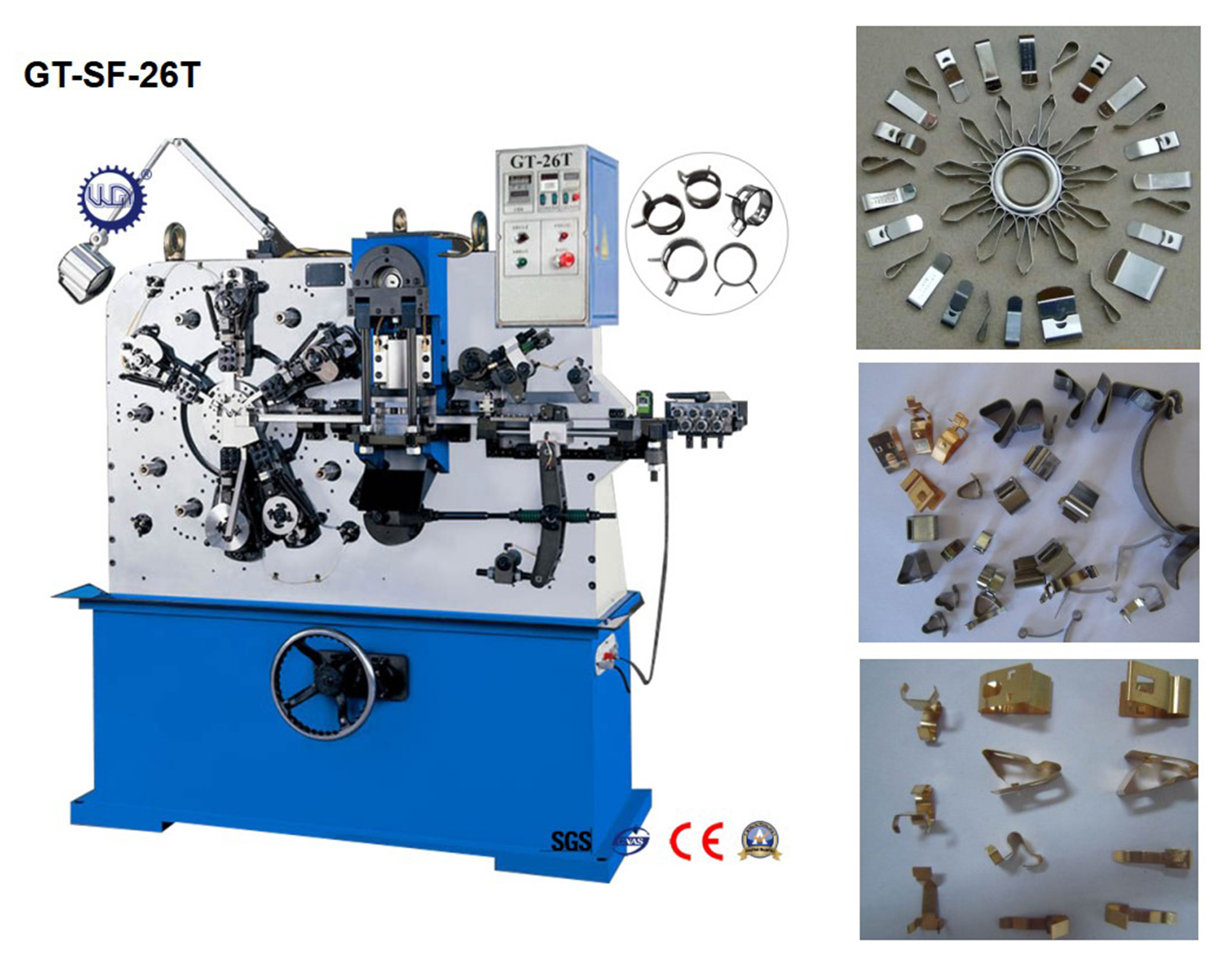

Model | GT-SF-10T | GT-SF-26T | GT-SF-38T |
Length of Wire Feeding | 150mm | 200mm | 320mm |
Width of Strip Wire | 10mm | 30mm | 50mm |
Thickness of Strip Wire | 0.04-0.5mm | 0.3-1.2mm | 0.8-2.0mm |
Pressure | 1500Kg | 10000Kg | 30000Kg |
Speed | 80-100pcs/minute | 60-80pcs/minute | 40-60pcs/minute |
Power | 2.2kw | 3.7kw | 7.7kw |
L*W*H | 1200*800*1600 | 1600*800*1600 | 1700*900*1800 |
Weight | 850Kg | 1200Kg | 1400Kg |

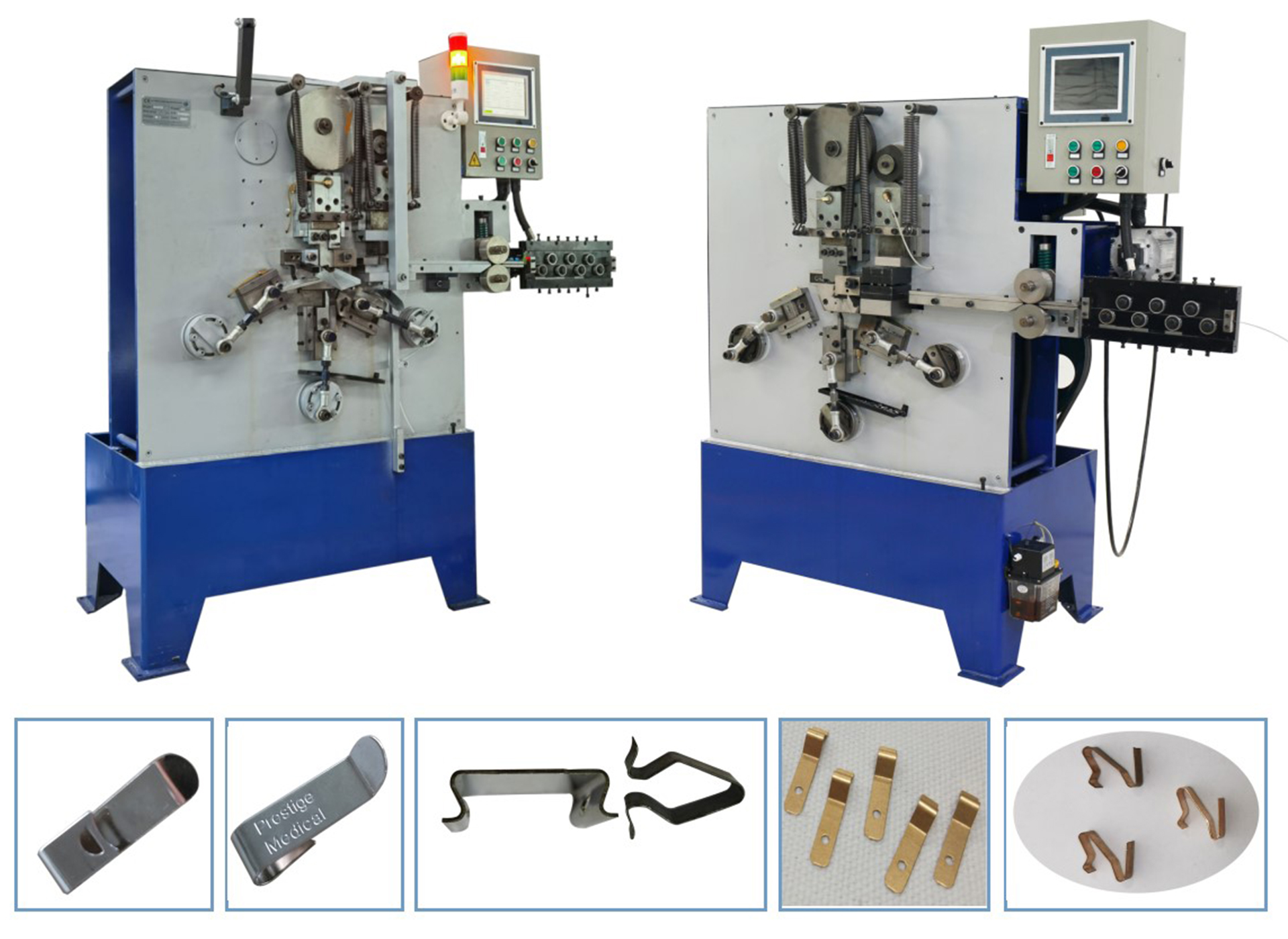

Flat Wire Bending Machine
This machine is equipped with Japan branded servo motor , CNC industrial controlling , Delta variator. High precision gear wheel, and precise feeding to be ±0.1mm tolerance, high production capacity of 80-150pcs per minute. Widely applied in electronics , automobile manufacturing fields.
Model | XS-SF-101 | XS-SF-201 | XS-SF-315 |
Length of Wire Feeding | 200mm | 200mm | 200mm |
Width of Strip Wire | 10mm | 20mm | 30mm |
Thickness of Strip Wire | 0.2-1.0mm | 0.2-1.0mm | 0.5-1.5mm |
Speed | 80-100pcs/minute | 60-80pcs/minute | 40-60pcs/minute |
Power | 2.2kw | 2.2kw | 2.2kw |
Servo motor | 1.5kw | 1.5kw | 1.5kw |
L*W*H | 1500*800*1580 | 1500*800*1580 | 1500*800*1580 |
Weight | 850Kg | 850Kg | 850Kg |

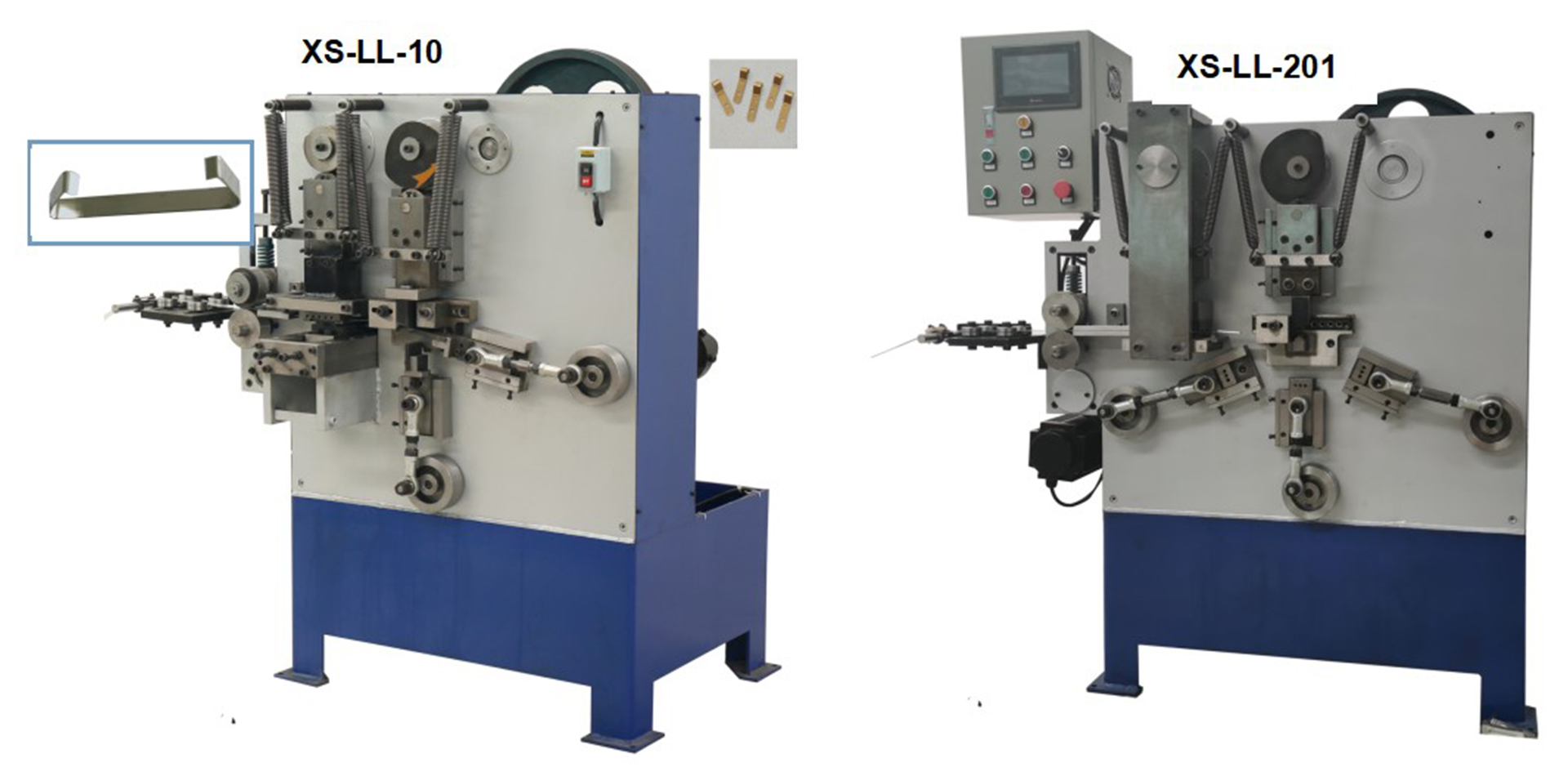

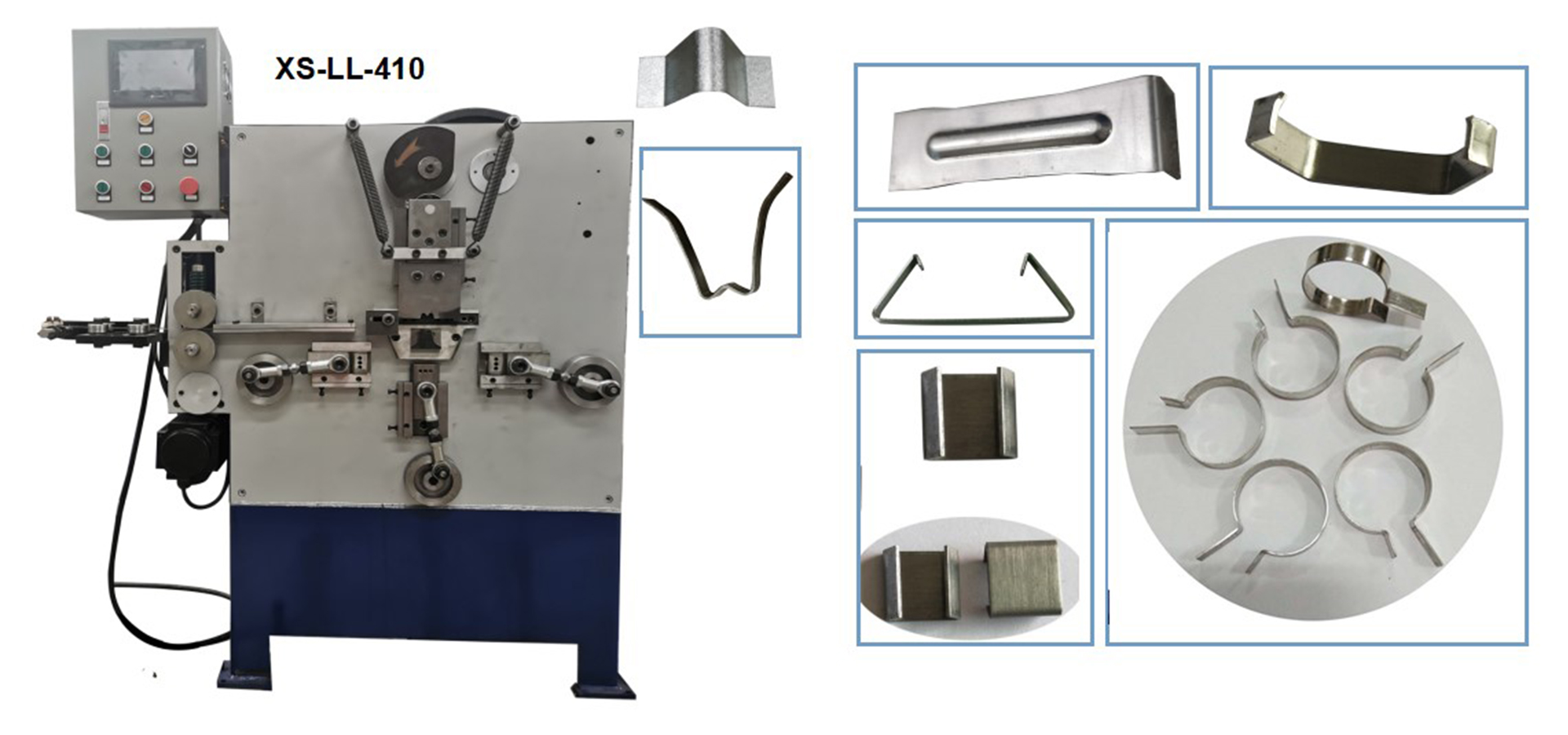

Mechanical Flat Strip Bending Machine
This machine is equipped with chain transfer driven, precision and durability is somewhat less . PLC with servo motor is optional upon request. Which was widely used in clamp, spring, stainless ring or copper Shrapnel.
Technical parameter
Model | XS-LL-108 | XS-LL-108PLC | XS-LL-201 | XS-LL-401 |
Length of Wire Feeding | 150mm | 150mm | 150mm | 150mm |
Width of Strip Wire | 10mm | 10mm | 20mm | 40mm |
Thickness of Strip Wire | 0.2-0.8mm | 0.2-0.8mm | 0.2-1.0mm | 0.5-1.0mm |
Speed | 80pcs/minute | 80pcs/minute | 60pcs/minute | 40-50pcs/minute |
Power | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
L*W*H | 1300*600*1480 | 1300*600*1480 | 1300*600*1480 | 1300*600*1480 |
Weight | 650Kg | 650Kg | 650Kg | 650Kg |
