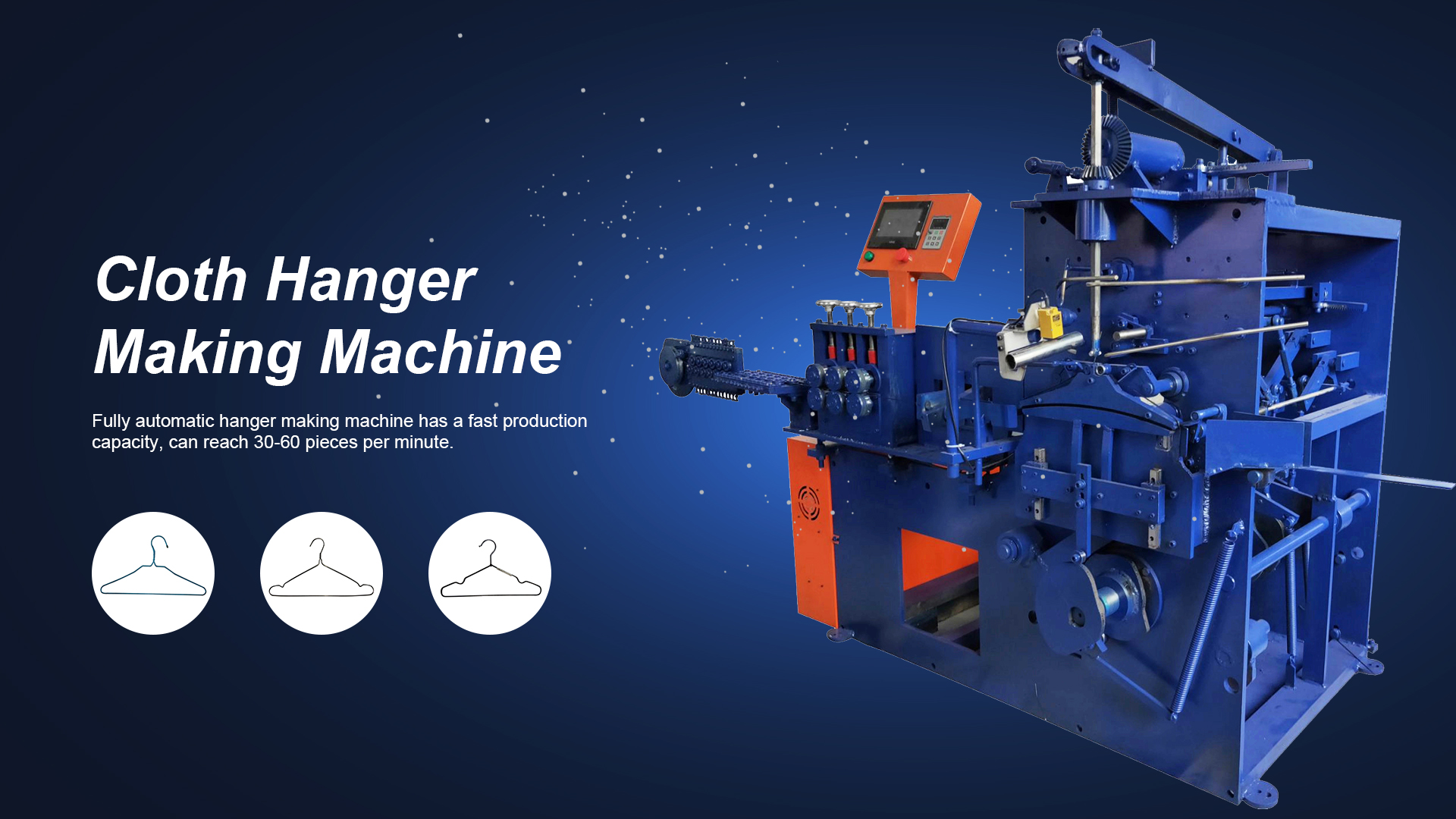

2021 XINSHENG GT-CH5 Cloth Hanger Making Machine
Product description : Fully automatic hanger making machine has a fast production capacity, can reach 30-60 pieces per minute. Smooth operation, high yield, less defective. Controlled by frequency converter, easy to adjust and form hanger. It’s feeding adopted in servo motor control , which is characterized by feeding at high precision. At the meantime, it can produce butterfly hanger with welding function all in line.
We have several model for options, common hanger, butter-fly hanger , PVC coated hanger .
We can make machine according to customer’s special requirement.
Product description :
Fully automatic hanger making machine has a fast production capacity, can reach 30-60 pieces per minute. Smooth operation, high yield, less defective. Controlled by frequency converter, easy to adjust and form hanger. It's feeding adopted in servo motor control , which is characterized by feeding at high precision. At the meantime, it can produce butterfly hanger with welding function all in line.
We have several model for options, common hanger, butter-fly hanger , PVC coated hanger.
We can make machine according to customer’s special requirement.
Technical Parameter :

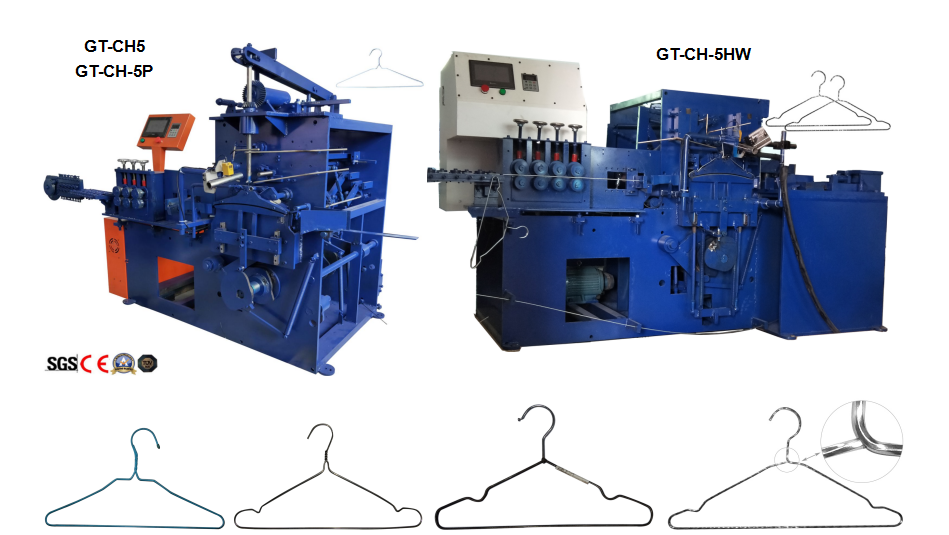

Model | GT-CH5 | GT-CH-5P | GT-CH-5W | GT-CH-5HW |
Wire size | 1.5mm-4.5mm | 1.5mm-4.5mm | 1.5mm-4.5mm | 1.5mm-4.5mm |
Function | Common | PVC coating | welding | welding and rivet end |
Feeding length | 500mm(11-19inch) | 500mm(11-19inch) | 500mm(11-19inch) | 500mm(11-19inch) |
Production rate | 50-60pcs per minute | 30-40pcs per minute | 30pcs per minute | 30pcs per minute |
Motor power | 2.2kw | 2.2kw | 2.2kw | 3.7kw |
Welding machine | No | No | Yes | Yes |
Machine size | 250*146*158cm | 250*146*158cm | 270*146*158cm | 360*153*168cm |
Weight | 1200.0kg | 1200.0kg | 1400.0kg | 1400.0kg |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
