Hanger Hook and Other Hook Machine

Product description : Fully automatic hanger making machine has a fast production capacity, can reach 30-60 pieces per minute. Smooth operation, high yield, less defective. Controlled by frequency converter, easy to adjust and form hanger. It’s feeding adopted in servo motor control , which is characterized by feeding at high precision. At the meantime, it can produce butterfly hanger with welding function all in line.

We have several model for options, common hanger, butter-fly hanger , PVC coated hanger .

We can make machine according to customer’s special requirement

Inquiry

Write a Review

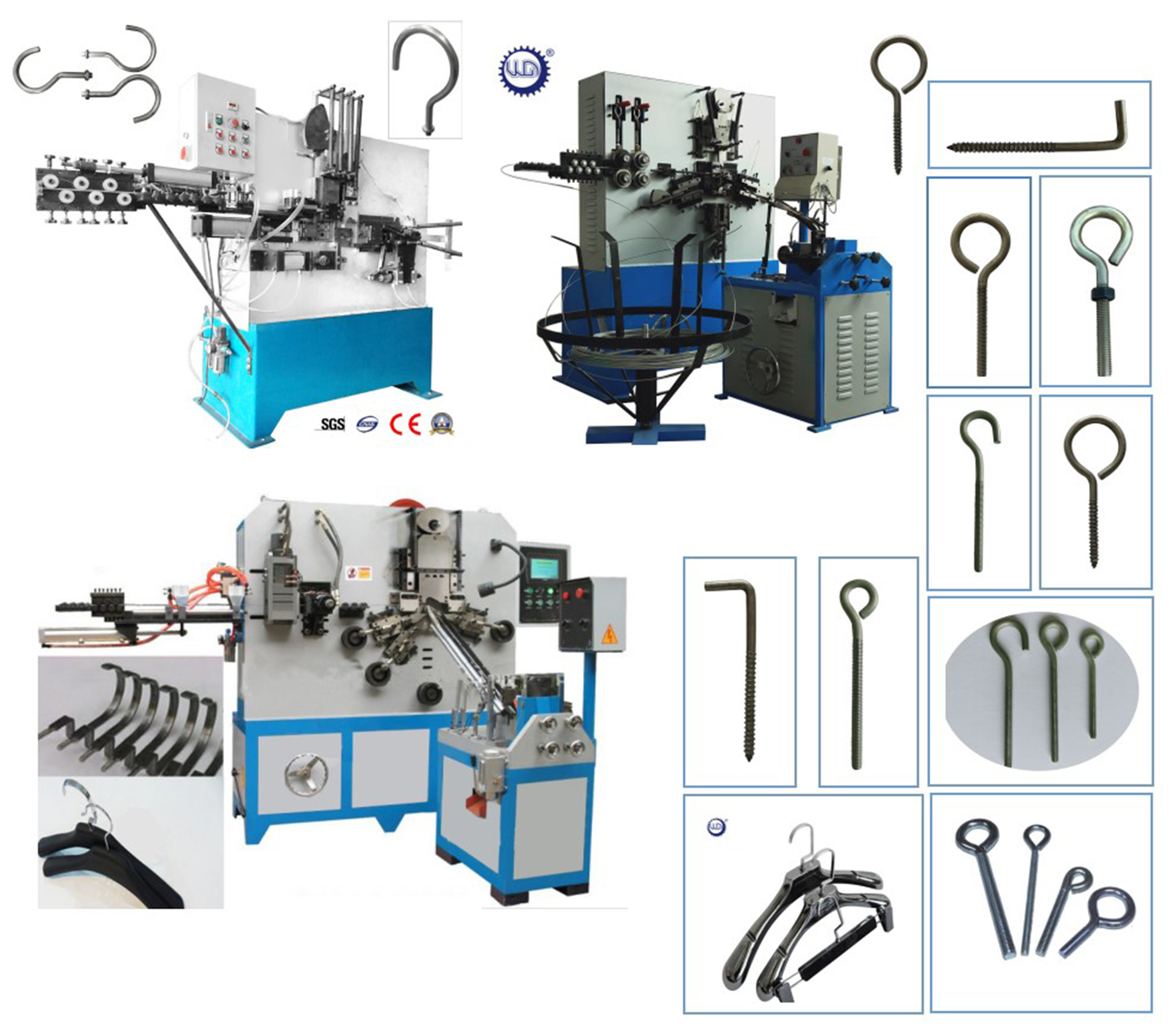

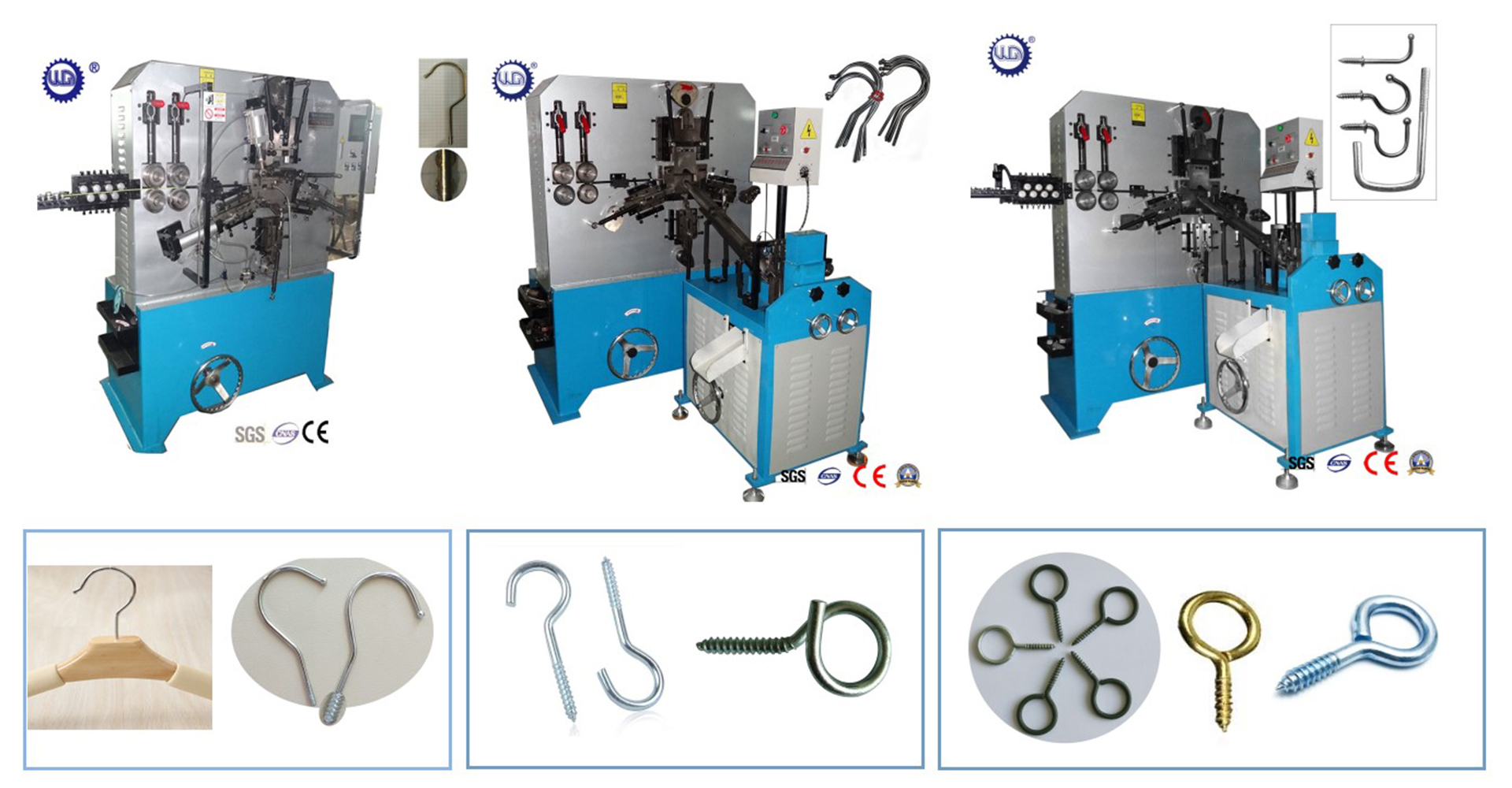

Hanger Hook and Other Hook Machine

Mechanical hook making machine is to produce kinds of hooks expertly. There are 3 types for option. Hanger hook, tomato hook, and Eye screw hooks.

It is with high output and stable quality. Once machine can achieve fully automatic in line, from feeding , straightening ,cutting, bending ,threading without stop. Labor saving and stable production.

In case that threading teeth was very deep and pitch is big . must choose EH60-M.

Technical Parameter

Model	GT-HM5	GT-EH5	GT-EH6-M	GT-EH8-M
Name	Ordinary hanger hook machine	Eyelet hook machine	Oversize hanger hook machine	Heavy hanger hook machine
Wire size	Iron :2.0-4.5mm Stainless steel	Iron: 2.0-5.0mm Stainless steel: 1.5-3.5mm	Iron：2.0-6.0mm Stainless steel: 1.5-4.0mm	Iron：3.0-8.0mm Stainless steel: 3.0-6.0mm
Feeding length	0-300mm	0-300mm	0-300mm	0-300mm
Threading length	15mm	30mm	100mm	100mm
Production rate	60pcs	60pcs	40pcs	18-20pcs
Forming motor	2.2kw	2.2kw	3.75kw	5.5kw
Threading motor	1.5kw	2.2kw	3.75kw	5.5kw
Dimensions (LxWxH)	76x130x175CM	176x138x175CM	193x150x185CM	210x160x185CM
Weight	1000kg	1000kg	1100kg	1200kg

Special Hanger Hook Making Machine

Technical Paramete

Model	GT-HM-6L	GT-HM-5F	GT-EH10-M
Name	Alumn hanger hook machine	Flat hanger hook machine	Heavy hanger hook machine
Wire size	2.0-6.0mm	2.0-5.0mm	Iron Q195：5.0-12.0mm
Feeding length	0-300mm	0-300mm	0-300mm
Threading length	No	20mm	100mm
Production rate	60pcs	40pcs	18-20pcs
Forming motor	2.2kw	3.75kw	7.5kw
Threading motor	No	2.2kw	7.5kw
Dimensions (LxWxH)尺寸CM	166x1120x175	210x160x185	210x160x185
Weight	1000kkg	1100kg	1200kg
