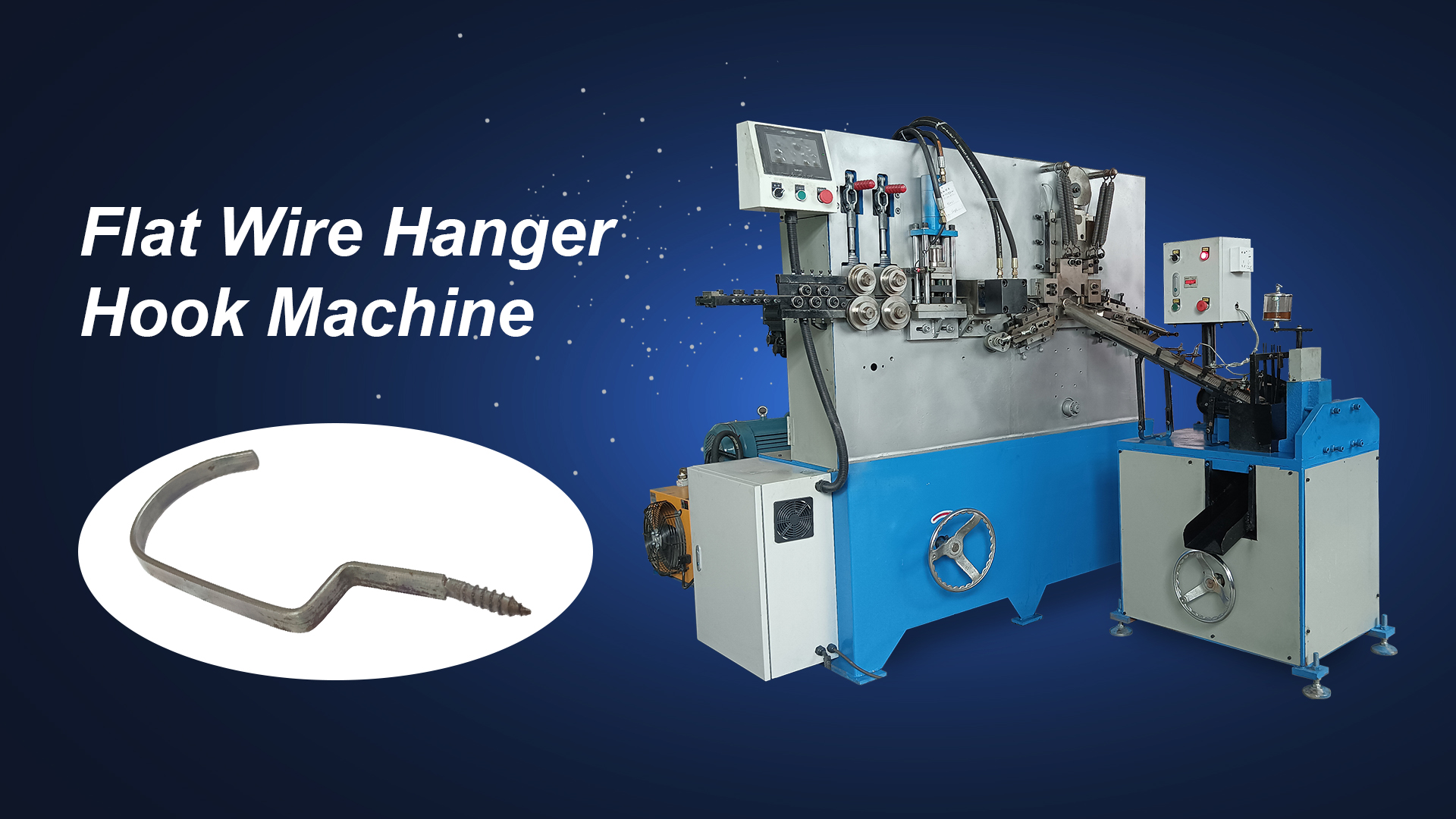

Automatic Flat Wire Hanger Hook Making Machine GT-HM-5F

GT-HM-5F is a fully automatic flat wire hanger hook forming machine. The advantage is high yield and stable production quality. The machine is stable and saves labor. This machine can complete fully automatic feeding, straightening, cutting, bending and forming, and threading.

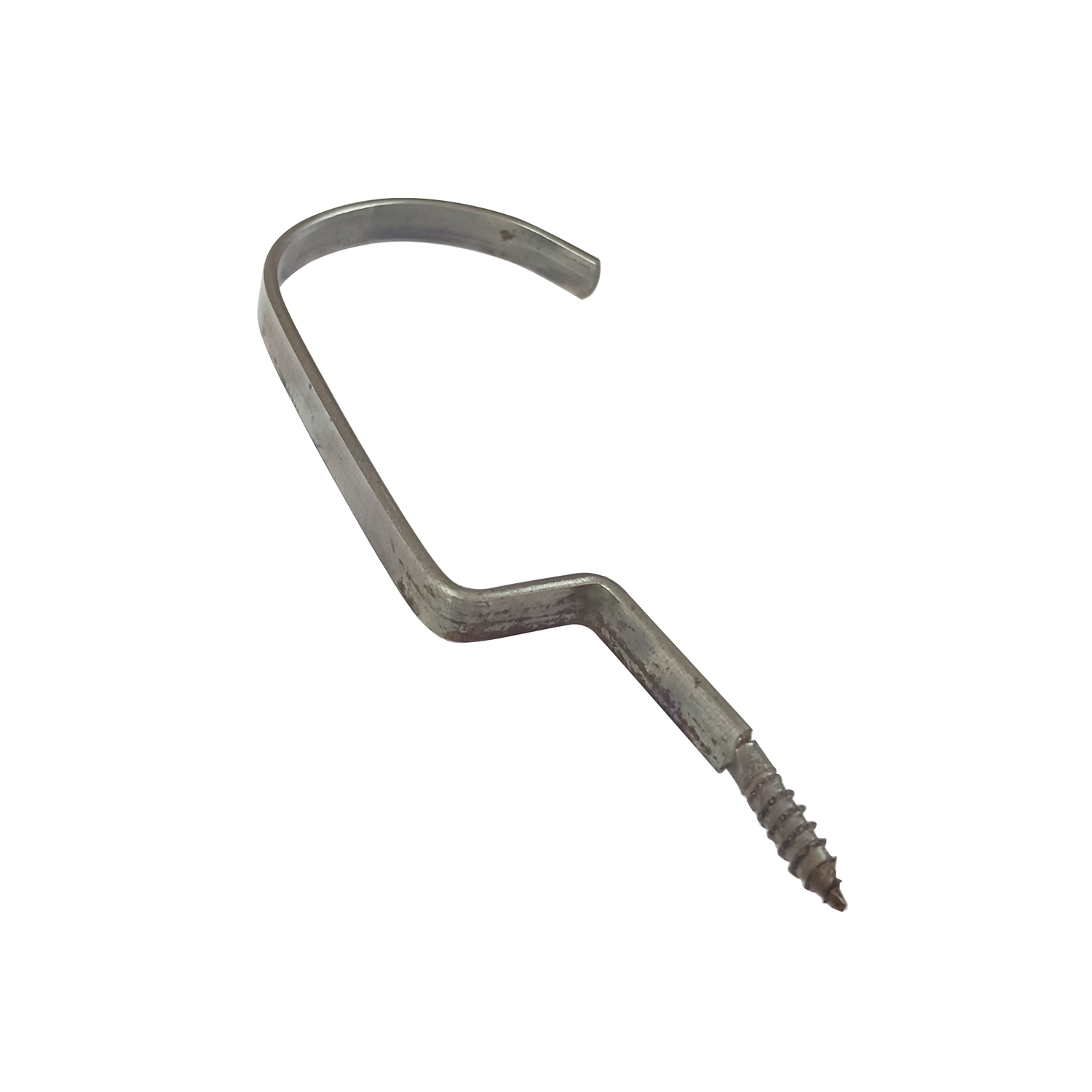

The GT-HM-5F flat wire hanger hook machine can produce flat wire hanger hooks with a wire diameter of 2.0-5.0mm. The product length range is 0-200mm, the threading length range is 20mm, the production speed is 40pcs/minute, the forming motor power is 3.75kw, the threading motor power is 2.2kw, the machine size is 210 * 160 * 185CM, and the machine weight is 1100kg.

Dongguan Xinsheng Hardware Machinery Co., Ltd. was established in September 2009 and has obtained 6 national invention patents and 20 utility model patents. Its products have passed multiple world authoritative certifications such as ISO, SGS, TUV, and CE. In 2016, it was approved as a national "high-tech enterprise" and a "technology-based small and medium-sized enterprise".

Xinsheng makes conscience equipment, ensuring users' peace of mind and quality!

Our company focuses on research and development, producing various metal wire bending machines. Hardware samples with 2D and 3D shapes are received, and non-standard customized automated equipment and production lines are used to achieve multi action bending by re punching, chamfering, pier head, tooth rubbing, welding, and other processes for 2D and 3D samples.

Our bending machines can be divided into three categories based on their driving methods:

1、 CNC CNC bending machine: The driving principle mainly consists of servo motors, including 3D and 2D wire bending machines/spring machines/CNC spring pressing machines.

2、 Hydraulic bending machine: driven by a hydraulic system, it meets the higher power requirements of the product, including rolling brush bracket bending machine, barrel hook forming machine, ring forming machine, flat material punching and bending integrated machine, pipe clamp machine, steel wire packaging and buckle machine, and various non-standard customized models.

3、 Mechanical bending machine: refers to the principle of motor driven gear or chain transmission, including packaging buckle machine, mechanical material bending machine, clothes hanger machine, clothes hanger hook machine, chain winding machine, mechanical spring rolling machine, etc.
