CNC Spring Grinding Machine
It is an ideal equipment for double-end grinding of large quantity spring.
CNC Spring end Grinding machine adopts servo motor to control the grinding wheel and has the functions of automatic inspection, compensation and alarming. The feeding speed and quantity of the grinding wheel, grinding pressure, rotating speed of the feeding plate all can be programmed on the computer screen, This machine is convenient to operate and has a high efficiency. It is an ideal equipment for double-end grinding of large quantity spring.

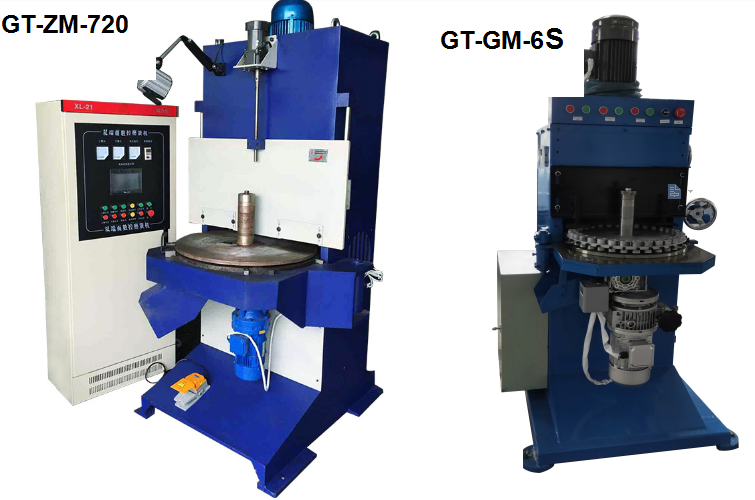

CNC Spring Grinding Machine Product Display Pictures：
CNC Spring Grinding Machine Product Description：
CNC Spring end Grinding machine adopts servo motor to control the grinding wheel and has the functions of automatic inspection, compensation and alarming. The feeding speed and quantity of the grinding wheel, grinding pressure, rotating speed of the feeding plate all can be programmed on the computer screen, This machine is convenient to operate and has a high efficiency. It is an ideal equipment for double-end grinding of large quantity spring.
CNC Spring Grinding Machine Technical Paramter：
Model | GT-ZM-710 | GT-ZM-720 | GT-ZM-730 | GT-GM-6S |
Wire diameter | 0.5-6.0MM | 1.0-10.0MM | 2.0-16.0MM | 2.0-6.0MM |
Grinding wheel safety line speed | 35m/s | 35m/s | 40m/s | 35m/s |
motor power | 7.0KW | 12KW | 25KW | 4.0KW |
Grinding Head Speed(n/min) | 1430 | 1430 | 1430 | 1430 |
Grinding spring diameter | ≤100mm | ≤160mm | ≤200mm | ≤60mm |
Grinding spring height | 10-180mm | 20-250mm | 10-320mm | 10-180mm |
Production rate | 40pcs/min | 40pcs/min | 40pcs/min | 40pcs/min |
Weigh（KG) | 1000（KG) | 2000（KG) | 4000（KG) | 1000（KG |
Machine tool size (cm) | 100*90*180 | 130*125*230 | 140*140*260 | 100*90*180 |
