Automatic Wire Pay-off Machine

Name: Automatic Wire Pay-off Machine
Uploaded: 2026-06-11T10:15:24+08:00
Description: The automatic wire feeding frame is used to produce spring with spring machine, which is helpful to improve the precision and speed of spring production. It can also be used for feeding other machines.

Inquiry

Write a Review

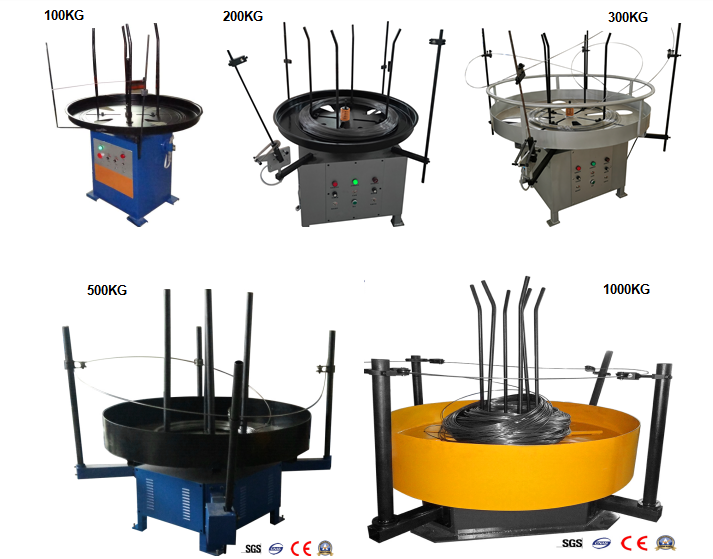

Automatic Wire Pay-off Machine Product Display Pictures：

Automatic Wire Pay-off Machine Product Description：

The automatic wire feeding frame is used to produce spring with spring machine, which is helpful to improve the precision and speed of spring production. It can also be used for feeding other machines. This equipment with spring machine can realize two kinds of speed control: inching or automatic. When the automatic wire feeder breaks or gets stuck, the whole system will stop automatically, so that the spring machine will stop working and give an alarm. With the spring machine of our company, the feeding speed can be adjusted automatically according to the speed of the production spring.

Automatic Wire Pay-off Machine Technical Parameter：

Model	Loading weight（KG）	Diameter of the feeding tray(MM)	Machine power	Weigh
GT-DC100	100KG	800	0.75KW	200KG
GT-DC200	200KG	1000	1.1KW	250KG
GT-DC300	300KG	1100		300KG
GT-DC400	400KG	1200	1.5KW	400KG
GT-DC500	500KG	1400	2.2KW	550KG
GT-DC800	800KG	1600	2.2KW	800KG
GT-DC1000	1000KG	2000	2.2KW	1100KG
GT-BL200 flat steel wire	200KG	I.D:240～320MM O.D:1100MM	0.5KW	350KG

Related Products

CNC Spring Grinding Machine

It is an ideal equipment for double-end grinding of large quantity spring. CNC Spring end Grinding machine adopts servo motor to control the grinding wheel and has the functions of automatic inspection, compensation and alarming. The feeding speed and quantity of the grinding wheel, grinding pressure, rotating speed of the feeding plate all can be programmed on the computer screen, This machine is convenient to operate and has a high efficiency. It is an ideal equipment for double-end grinding of large quantity spring.

Spring Heating Furnace

Continuous temper furnace is a kind of heat treatment equipment for spring industry and food industry that is popular among customers. Adopts imported electrical elements, stepless speed regulators, has advantages as energy saving, rapid temperature raising, uniform and stable temperature in furnace chest, high precision in automatic control, convenient for continuous working, good reliability ect.

3D CNC Wire Bending Machine

CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed.Adopts Japanese branded servo motor and screen display with high quality controller. Easy operation and fast turn-key.

2D CNC Wire Bending Machine

Adopt CNC industrial computer system with 3 years guarantee period. It is combined with 3-4 servo motors, which can make and store 2000sets programs , supporting data and parameters outlet by USB,. Stable sire feeding, and convenient programming by inputting parameters. Has the advantage of less noise and endurable quality ,comparing with traditional hydraulic bending machine.
