Wire Straightening And Cutting Machine
Steel wire straight and cutting machine is suitable for steel wire, stainless steel wire, copper wire, carbon steel wire and other strong, hard wire, can be straightening and cutting Features:line speed output is higher, speed can reach to more than 20 meters/min.

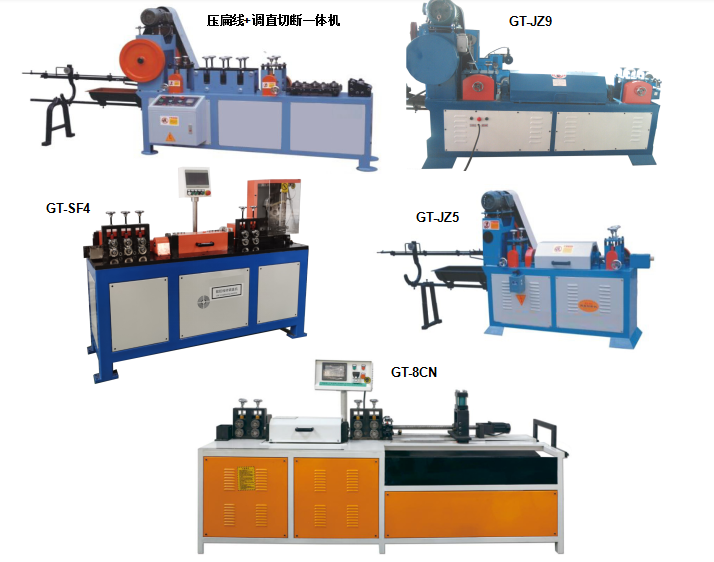

Wire Straightening And Cutting Machine Product Display Pictures：
Wire Straightening And Cutting Machine Product Description：
steel wire straight and cutting machine is suitable for steel wire, stainless steel wire, copper wire, carbon steel wire and other strong, hard wire, can be straightening and cutting Features:line speed output is higher, speed can reach to more than 20 meters/min.
Wire Straightening And Cutting Machine Technical Parameter：
Model | Wire range | Length range | Speed(m/min) | Total power (kw) | L*W*H | Weight | |
mechanical type | GT-JZ2.5 | 1-2.5 mm | 850mm | 28 | 0.55*2 | 950*500*870 | 400kg |
GT-JZ5 | 2.5-5 mm | 2000mm | 24 | 0.55+1.5 | 1450*520*1300 | 500kg | |
GT-JZ9 | 5-9 mm | 2000mm | 24 | 2.2+4 | 1800*600*1500 | 650kg | |
GT-JZ12 | 9-12 mm | 2000mm | 24 | 3+5.5 | 1900*700*1800 | 900kg | |
high speed CNC type | GT-SF4 | 1.5-4mm | 80-500mm | 80-150 | 1.5+1.5 | 2670*700*1450 | 1100kg |
GT-SF5 | 1.5-5mm | 100-500mm | 10-60 | 1.5+2.2 | 2670*700*1450 | 1300kg | |
hydraulic CNC type | GT-JZ-6CN | 2-6 mm | 1.5+2.2 | 2670*700*1450 | 1350k | ||
GT-JZ-8CN | 3-8 mm | 300-2000mm | 20-45 | 2.2+3.7 | 2670*700*1450 | 1500kg |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
