3D CNC Wire Bending Machine1
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed.
Adopts Japanese branded servo motor and screen display with high quality controller. Easy operation and fast turn-key.

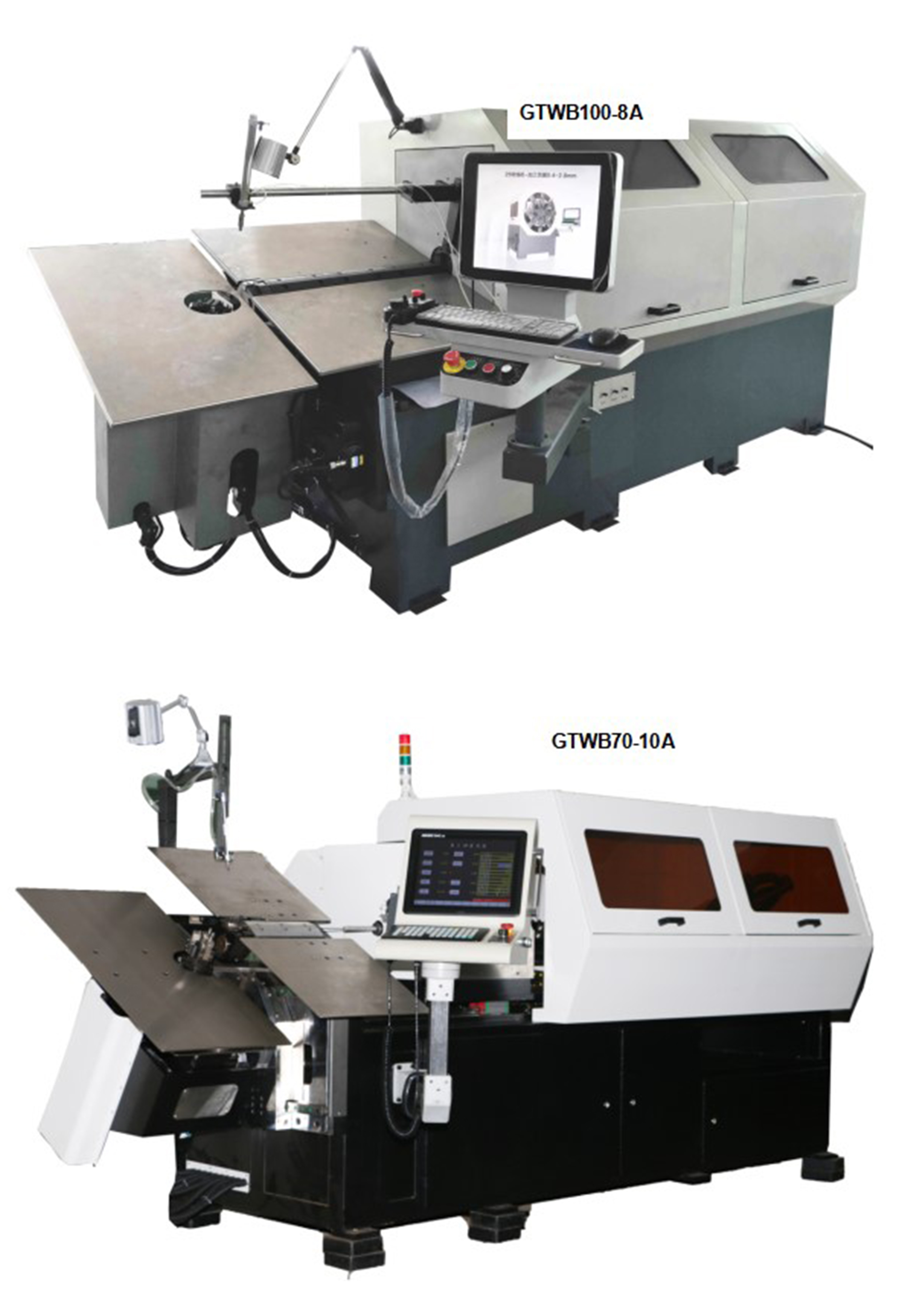

3D CNC Wire Bending Machine

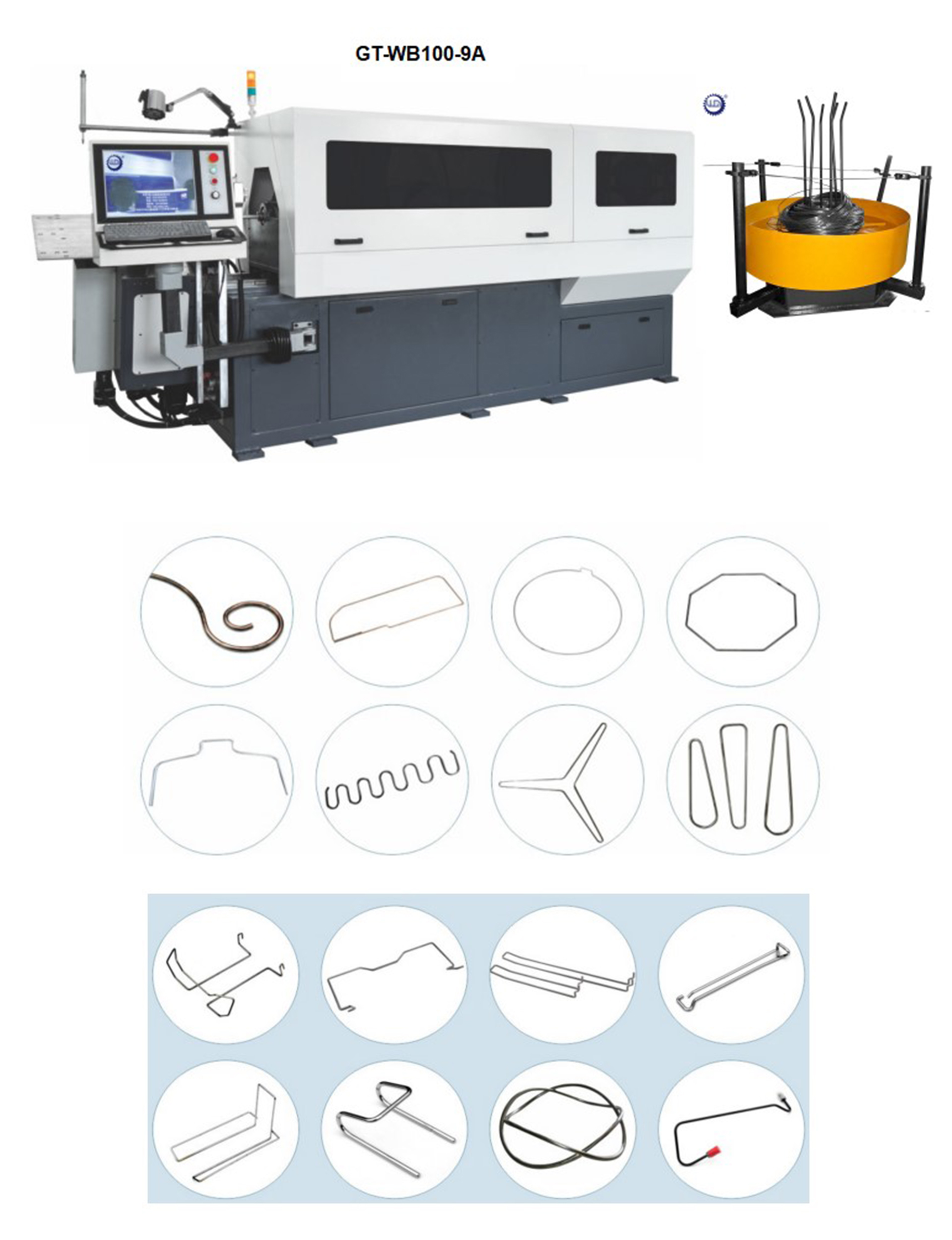

3D CNC Wire Bending Machine
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed.
Adopts Japanese branded servo motor and screen display with high quality controller. Easy operation and fast turn-key.
Advantages & Feature
3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field
1）Auto Industry area2）Metal wire industry
3）Display table and cargo shelf4）Furniture and Kitchen
5）Hardware industry6）Mattress, Sofa spring area
7）Architecture area8）Hardware Artcraft
Technical Paramter
Model型号 | GT-WB-100-9A | GT-WB-80-8A | GT-WB-70-10A | GT-WB-70-8A | GT-WB-70-7A |
Wire size 线径 | 4.0-10.0mm | 4.0-9.0m | 2.0-7.0mm | 2.0-7.0mm | 2.0-7.0mm |
Axis轴数 | 9 | 8 | 10 | 8 | 7 |
Wire feeding value 送线指令(mm) | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.01 | Max.10000.00 Min.0.0 |
Feeding length number 送线轮数量 | 3pairs/对 | 3pairs/对 | 3pairs/对 | 3pairs/对 | 3pairs/对 |
Wire turning angle 线转角度 | Unlimited 无限 | Unlimited 无限 | Unlimited 无限 | Unlimited 无限 | Unlimited 无限 |
Platform Lifting Height 平台提升高度 | +25至-120mm | +25至-120mm | +25至-120mm | +25至-120mm | +25至-120mm |
Twisting head lift height 扭转头升降行程 | +20至-180mm | +20至-180mm | +20至-180mm | +20至-180mm | +20至-180mm |
Left to right moving range 从左到右移动范围 | Left左:100mm Right右:50mm | Left左:100mm Right右:50mm | Left左:100mm Right右:50mm | Left左:100mm Right右:50mm | Left左:100mm Right右:50mm |
Feeding front and back moving range 送线前后移动范围 | Front前:300mm Back后:100mm | / | Front前:300mm Back后:100mm | / | / |
Total output power of servo motors伺服电机总功率 | 27.8KW | 25.8KW | 24.2KW | 17.5KW | 16.2KW |
配自动线架 Automatic decoiler | 1000KG | 800KG | 500KG | 500KG | 500KG |
machine size尺寸(cm) | 420x152x160 | 420x152x160 | 380x1520x1600 | 260x122x160 | 260x122x160 |
machine weight机器重量 | 4500.0(kg) | 4200.0(kg) | 3800.0(kg) | 3200.0(kg) | 2800.0(kg) |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
