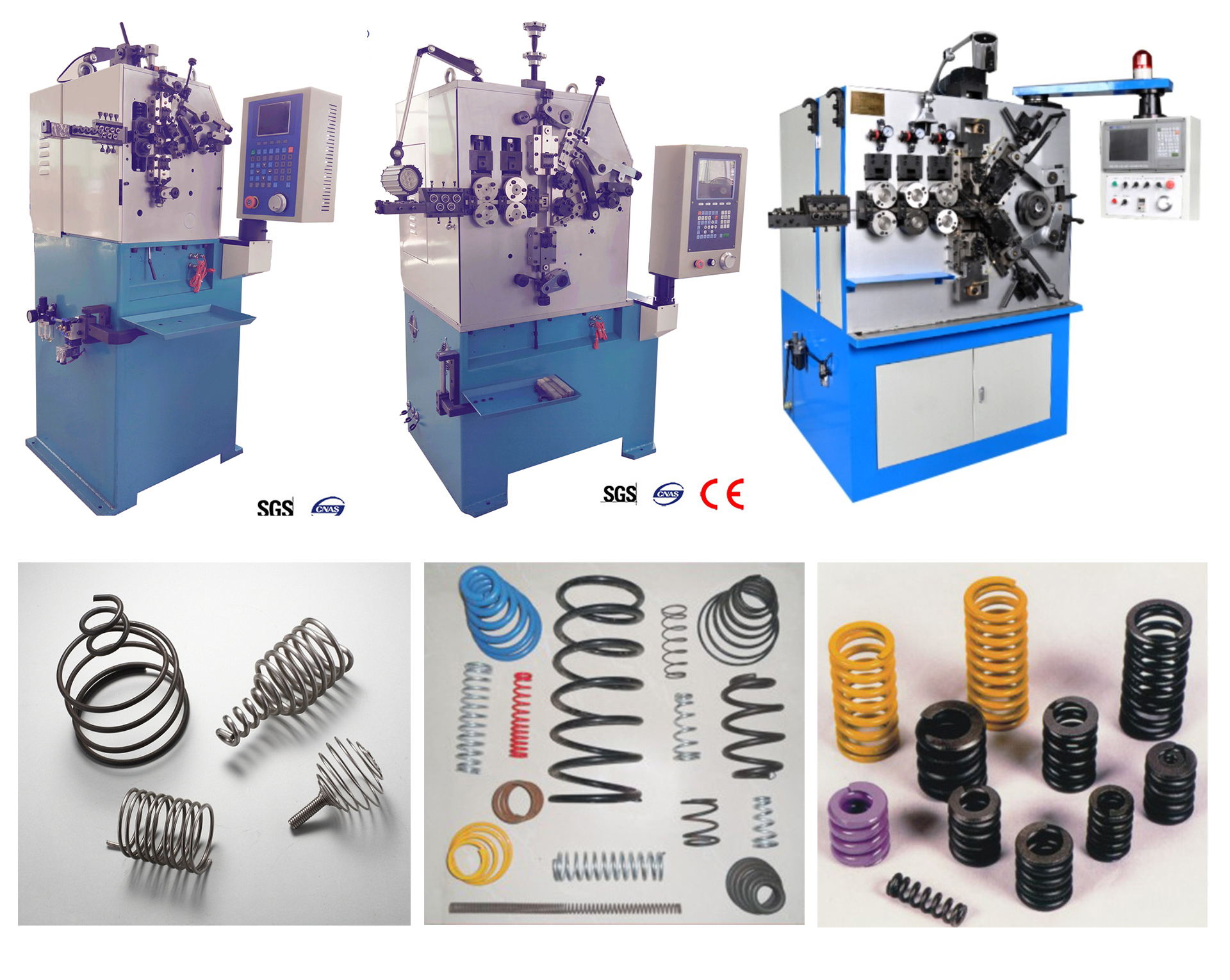

CNC Spring Coiling Machine
CNC spring coiling machine is specialized in producing high-precision and high-speed compression spring equipment. Japan Sanyo ascended the throne servo motor, screen display and high-quality controller. This machine is the most professional and widely used model in the spring making industry.
CNC Spring Coiling Machine
CNC spring coiling machine is to produce compression springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with high quality controller.
Technical Parameter
Model型号 | GT-CS-208 | GT-CS-220 | GT-CS-335 | GT-CS-550 | GT-CS-580 |
Wire size(mm) 线径 | 0.2-1.0 | 0.5-2.0 | 0.8-3.5 | 2.0-5.0 | 3.0-8.0 |
Max. outer dia. 最大直径 | 20mm | 50mm | 50mm | 60mm | 80mm |
Axes轴数 | 2 | 2 | 3 | 5 | 5 |
Feeding length 送线长度 | Unlimited无限 | Unlimited无限 | Unlimited无限 | Unlimited无限 | Unlimited无限 |
Wire feed speed 送线速度 | 0.-100M/min | 0.-110M/min | 0.-120M/min | 0.-120M/min | 0.-120M/min |
Production rate 生产率 | 0-500pcs/min | 0-300pcs/min | 0-130pcs/min | 0-150pcs/min | 0-100pcs/min |
Wire feed Servo Motor 送线伺服功率 | 1.0kw | 2.7kw | 5.5kw | 15.0kw | 30.0kw |
Cam Servo motor 凸轮伺服功率 | 1.0kw | 2.7kw | 5.5kw | 4.5kw | 7.0kw |
Pitch(Quill)motor 间距（转芯）电机功率 | / | / | 1.0kw | 2.7kw | 2.7kw |
Top cut motor 顶切电机功率 | / | / | / | 4.5kw | 7.0kw |
Bottom cut motor 底切电机功率 | / | / | / | 4.5kw | 7.0kw |
Packing Size(L*W*H)尺寸 | 1390X1030X1630 | 1490x1030x1700 | 1500x920x1700 | 1500x1300x1900 | 2200x1700x2400 |
Weight 重量 | 350.0KG | 800.0KG | 1200.0kg | 3500.0kg | 7500.0KG |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
