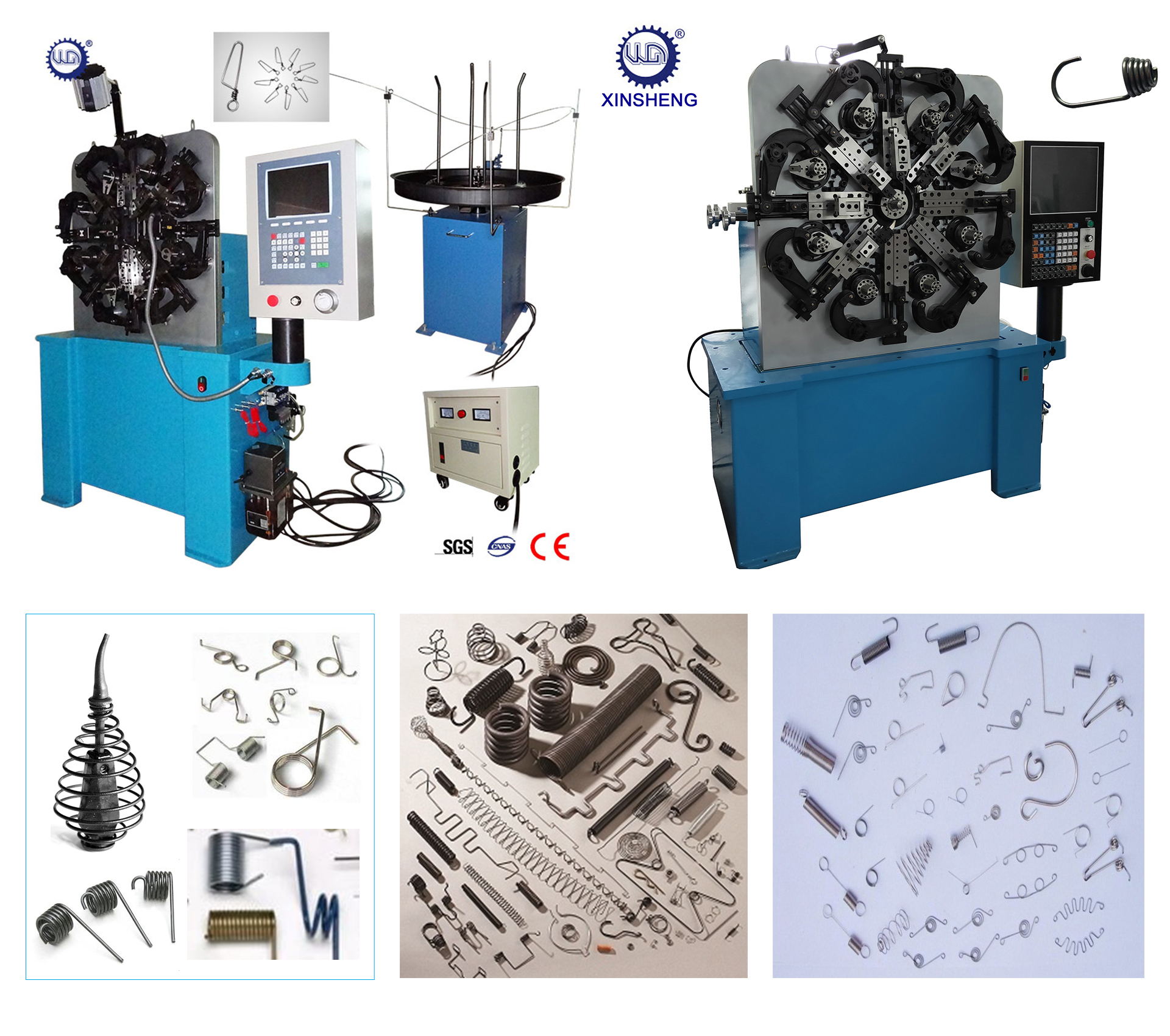

CNC Spring Forming Machine
CNC spring forming machine is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and high quality controlling system. It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.
CNC Spring Forming Machine
CNC spring forming machine is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and high quality controlling system. It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.
Technical Parameter
Model型号 | GT-SF-20B | GT-SF-35W | GT-SF-50W | GT-SF-60W |
Wire size(mm) 线径 | 0.2-2.3 | 1.0-4.0 | 1.0-5.0 | 3.0-6.5 |
Max. outer dia. 最大直径 | 50mm | 50mm | 60mm | 110mm |
Axes轴数 | 3(4) | 3(4) | 3(4) | 3(4) |
Feeding length 送线长度 | unlimited | unlimited | unlimited | unlimited |
Wire feed speed 送线速度 | 0-100M/min | 0-75M/min | 0-75M/min | 0-75M/min |
Production rate 生产率 | 0-120pcs/min | 0-100pcs/min | 0-180pcs/min | 0-60pcs/min |
Wire feed Motor送线电机功率 | 2.7kw | 5.5kw | 7.5kw | 15.0kw |
Cam motor 凸轮电机功率 | 2.7kw | 5.5kw | 7.5kw | 7.5kw |
Quill motor 转芯电机功率 | 1.0kw | 1.0kw | 1.0kw | 1.5kw |
Size(L*W*H)mm 尺寸 | 1100x600x1600 | 1700x800x1900 | 2300x1200x1900 | 3000x1800x2000 |
Weight 重量 | 900.0kg | 1200.0kg | 1400.0kg | 1500.0kg |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
