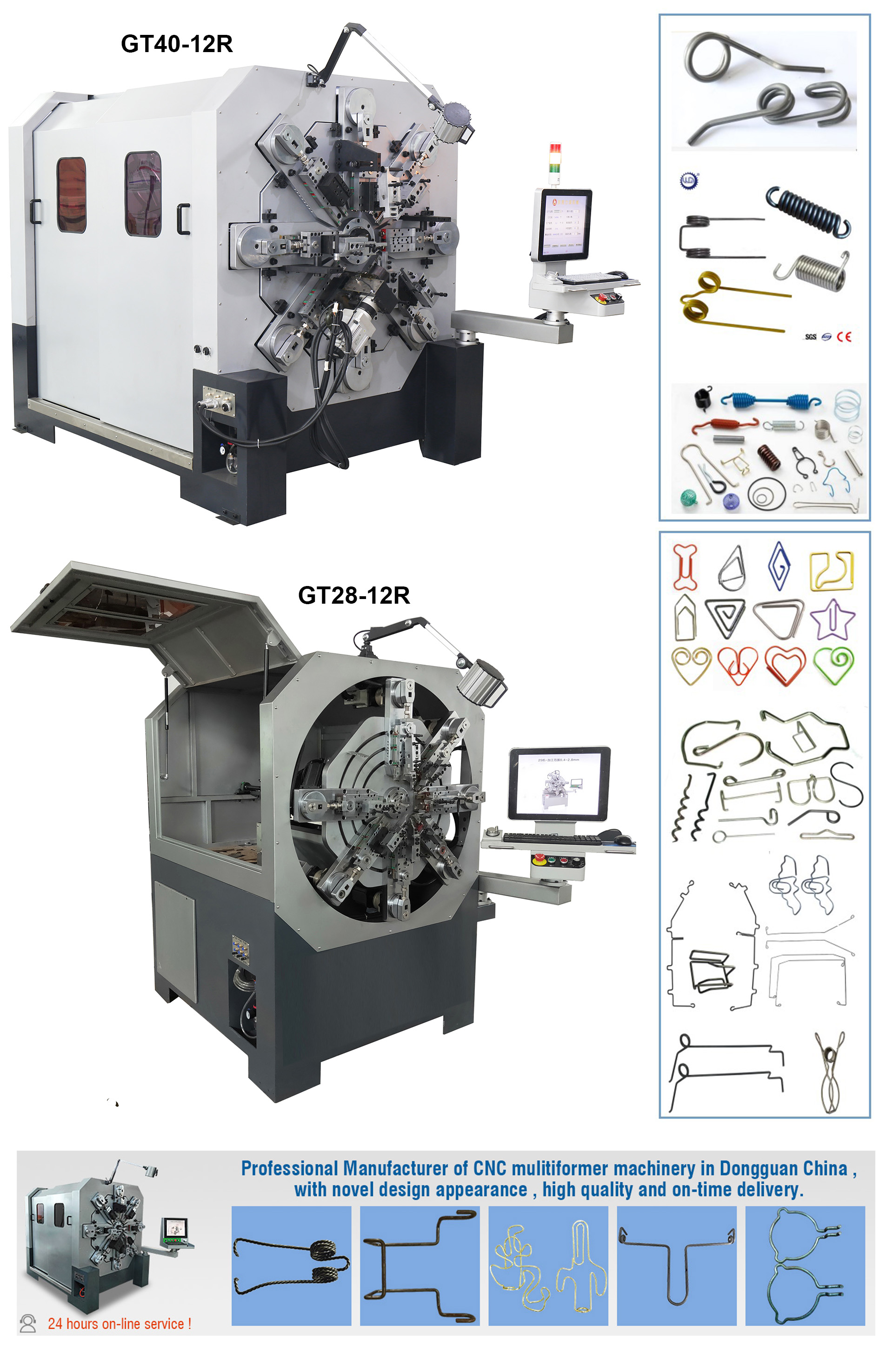

Multi-axis CNC Wire Bending Machine
Multi-axis CNC Wire Bending Machine.
Function and Features:
1.Adapt camless design, fast adjusting of machine, high precision and stable quality
2. Adopt Japan Panasonic Servo motor and Germany Roster reducer.
3. Wire rotation design , stable feeding and more convenient adjustment of machine
4. English and Chinese interface, easy operation , less experience required.
5. When upgrading the machine technology, it can solve technical difficulty which ordinary CNC wire bending machine or spring machine can not do.
Multi-axis CNC Wire Bending Machine
Function and Features:
1.Adapt camless design, fast adjusting of machine, high precision and stable quality.
2. Adopt Japan Panasonic Servo motor and Germany Roster reducer.
3. Wire rotation design , stable feeding and more convenient adjustment of machine.
4. English and Chinese interface, easy operation , less experience required.
5. When upgrading the machine technology, it can solve technical difficulty which ordinary CNC wire bending machine or spring machine can not do.
Technical Paramter
Model型号 | GT25-10 | GT28-12R | GT35-1 | GT35-12R | GT40-12 | GT48-12R | GT60-12 | GT80-12R |
Wire dia(mm) | Hard:0.2-2.5 Soft:0.5-3.5 | Hard:0.4-2.8 Soft:0.5-4.0 | Hard:0.8-3.5 Soft:2.0-5.0 | Hard:0.8-3.5 Soft:2.0-5.0 | Hard:1.2-4.0 Soft:2.0-6.0 | Hard:1.2-4.8 Soft:3.0-8.0 | Hard:2.0-6.0 Soft:3.0-10 | Hard:3.0-8.0 Soft:5.0-12.0 |
Max. wire feeding value | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
Min. wire feeding value(mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Max. wire feeding speed(m/min) | 120 | 120 | 120 | 80 | 80 | 80 | 80 | 80 |
Max. wire feeding length | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
Axis numbe | 10 | 12 | 10 | 12 | 12 | 12 | 12 | 12 |
Total output power of servo motors(kw) | 10.0KW | 13.3KW | 14.2KW | 17.6KW | 21.8KW | 23KW | 38.4KW | 55.0KW |
Program storage(plus) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Compressor air pressure(kg/cm) | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 |
Probe number | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Overall length(mm) | 1250 | 1900 | 1400 | 2300 | 2750 | 2750 | 3500 | 3500 |
Overall width(mm) | 1030 | 1350 | 1250 | 1350 | 1600 | 1600 | 2100 | 2100 |
Overall height(mm) | 1670 | 1900 | 1760 | 1780 | 1920 | 1920 | 2200 | 2200 |
Net weight机(kg) | 980 | 1500 | 1600 | 2500 | 4100 | 5000 | 7000 | 8000 |
