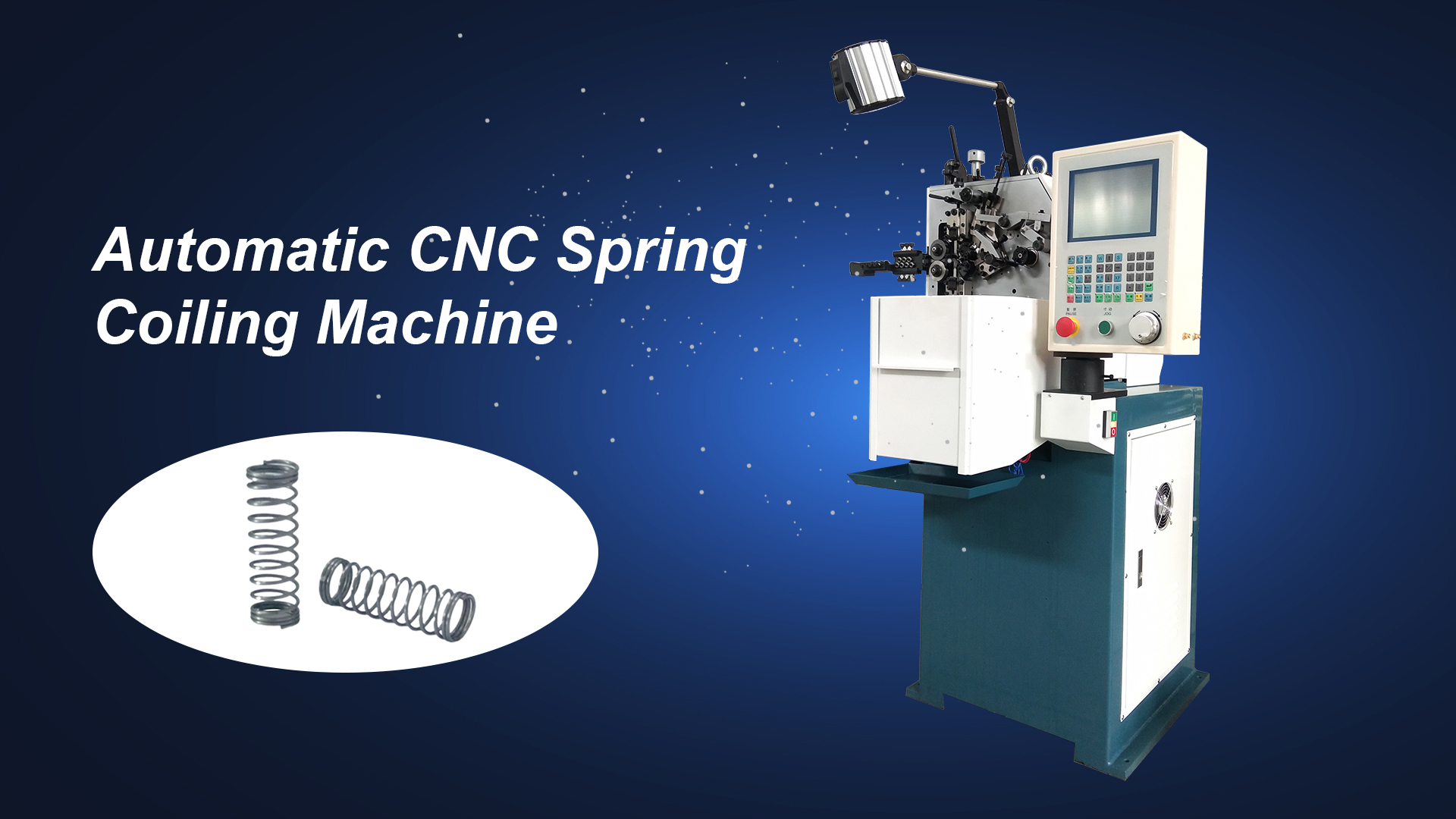

Automatic CNC Spring Coiling Machine
This machine adopts a two axis high-precision computer to control the wire feeding shaft and camshaft, and the two axes can operate synchronously or independently. The wire feeding shaft controls the wire feeding, and the camshaft drives the cam to control the outer diameter, pitch, cutting tool, and forming. This machine is suitable for rolling various left and right rotating springs, torsion springs, wire forming and other irregular springs.
Automatic CNC Spring Coiling Machine adopts a two axis high-precision computer to control the wire feeding shaft and camshaft, and the two axes can operate synchronously or independently. The wire feeding shaft controls the wire feeding, and the camshaft drives the cam to control the outer diameter, pitch, cutting tool, and forming. This machine is mainly suitable for processing various precision compression springs (spiral springs), simple torsion springs, and tension springs within the wire diameter range, such as compression springs, tower springs, nozzle springs, battery springs, electronic springs, keyboard springs, toy springs, magazine springs, lighting springs, oil seal springs, probe springs, gastroscope springs, and precision springs.
Main technical parameters：
| model | GT-CS-208 |
| Processing wire diameter (mm) | Φ 0.2~ Φ 0.8 |
| Processing outer diameter (mm) | Φ18 |
| Wire feeding speed | 100m/min(max) |
| Delivery command value | ±0.01~±9999.99mm |
Cam command value | ±0.1°~±359.9° |
| Wire feeding servo motor (kw) | 1.0 |
Cam servo motor (kw) | 1.0 |
| Machine weight (kg) | 350 |
| source | Three Phase 380V.AC.50HZ |
Machine size (length x width x height) | 760x630x1350mm |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
