Professional Customized CNC Spring Coiling Machine（2021）- XINSHENG MACHINE
CNC spring coiling machine is to produce compression springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with high quality controller.
It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 2-5 axis with spinner upon request
CNC spring coiling machine is to produce compression springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with high quality controller.

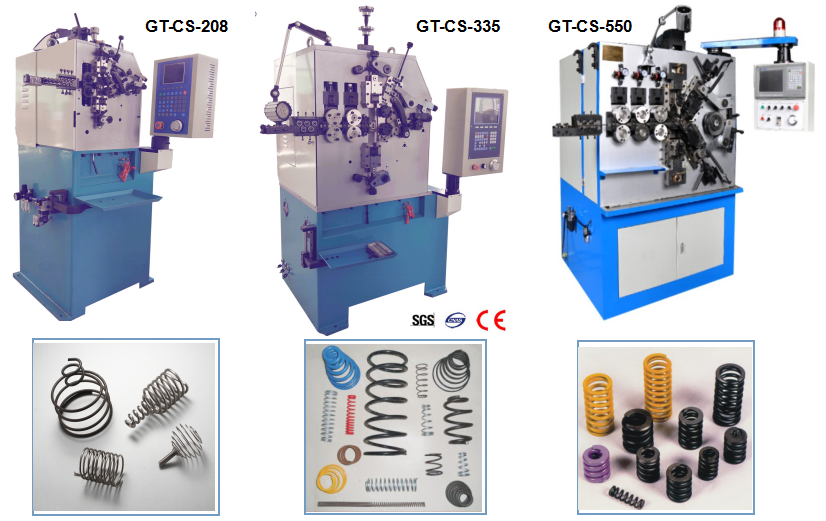

Model 型号 | GT-CS-208 | GT-CS-220 | GT-CS-335 | GT-CS-550 | GT-CS-580 |
Wire size(mm) | 0.2-1.0 | 0.5-2.0 | 0.8-3.5 | 2.0-5.0 | 3.0-8.0 |
Max. outer dia. | 20mm | 50mm | 50mm | 60mm | 50mm |
Axes | 2 | 2 | 3 | 5 | 5 |
Feeding length | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
Wire feed speed | 0.-100M/min | 0-110M/min | 0-120M/min | 0-120M/min | 0-120M/min |
Production rate | 0-500pcs/min | 0-300pcs/min | 0-130pcs/min | 0-150pcs/min | 0-100pcs/min |
Wire feed Servo Motor | 1.0kw | 2.7kw | 5.5kw | 15.0kw | 30.0kw |
Cam Servo motor | 1.0kw | 2.7kw | 5.5kw | 4.5kw | 7.0kw |
Pitch(Quill)motor | / | / | 1.0kw | 2.7kw | 2.7kw |
Top cut motor | / | / | / | 4.5kw | 7.0kw |
Bottom cut motor | / | / | / | 4.5kw | 7.0kw |
Size(L*W*H) | 870X800X1600 | 1000x920x1700 | 1100x920x1700 | 1500x1300x1900 | 2200x1700x2400 |
Weigh | 350.0KG | 800.0KG | 1200.0KG | 3500.0kg | 7500.0kg |
Spring coiling machine is commonly known as spring machine, which refers to mechanical equipment that produces springs. According to the functional characteristics, it is divided into: compression spring machine, tension spring machine, universal machine, disc machine and special spring machine such as snake spring machine and torsion spring machine. According to the driving mode, it is divided into: semi-automatic, automatic, and numerical control.
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
